Equipment

Avopiling has a wide range of equipment used in ground engineering applications. With our wide fleet, we have the flexibility to manage and deliver everything from Diaphragm Wall, Continuous Flight Auger, Driven piles and Ground Improvement Works i.e. Cutter Soil Mixing, Turbojet and Jet Grouting. With the recent acquisition of the biggest bored piling rig in Australia, Avopiling is capable to deliver large and deep bored foundation piles and shafts. We also have all the ancillary equipment that is required for everyday operations onsite. Our site teams are able to utilise excavators, air compressors, grout mixing plants, bentonite processing plants and a variety of other plant items to ensure that projects are delivered safely and on time.

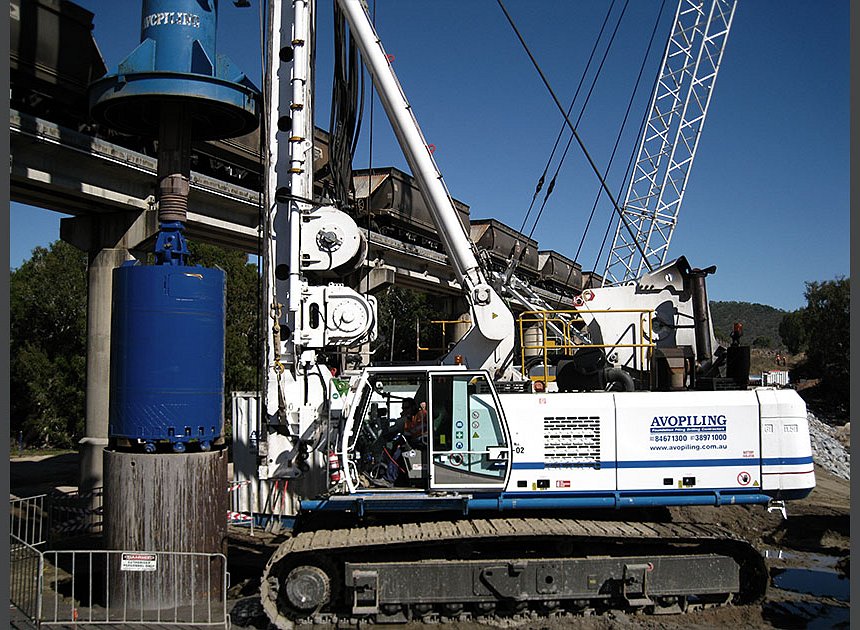

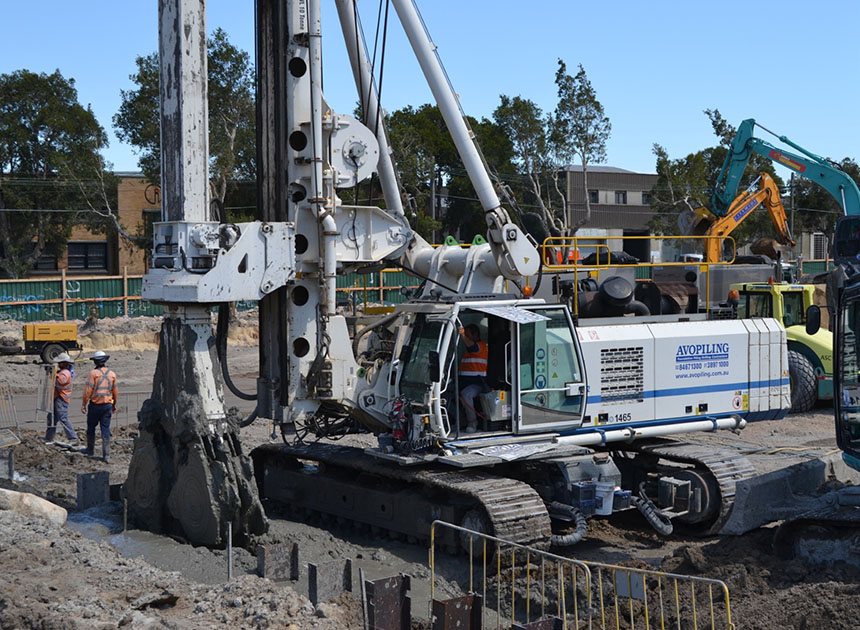

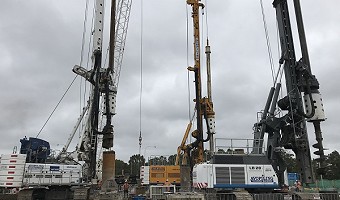

  • Drilling Rigs

    Our state of the art fleet is made up of highly respected European piling rig manufacturers, Bauer, Liebherr, Soilmec and Tescar drilling rigs. Capacities ranging from 11t to 180t working weights. Avopiling offers a variety of drilling diameters ranging from 300mm to 3800mm piles and to drilled depths of up to 90m into hard rock. Our unique low headroom "Stumpy" piling rig and newly acquired HPM 200 enables us to work efficienlty below bridges, power lines, within tunnels as well as in other extremely restricted sites. This machine can also drill up to a diameter of 1.5m. Our Bauer BG45 recently acquired is the largest bored piling rig in Austrlia.

    With our advanced drilling tools we can drill into any type of rock ranging from extremely weathered wet rock to extremely high strength fresh rock.

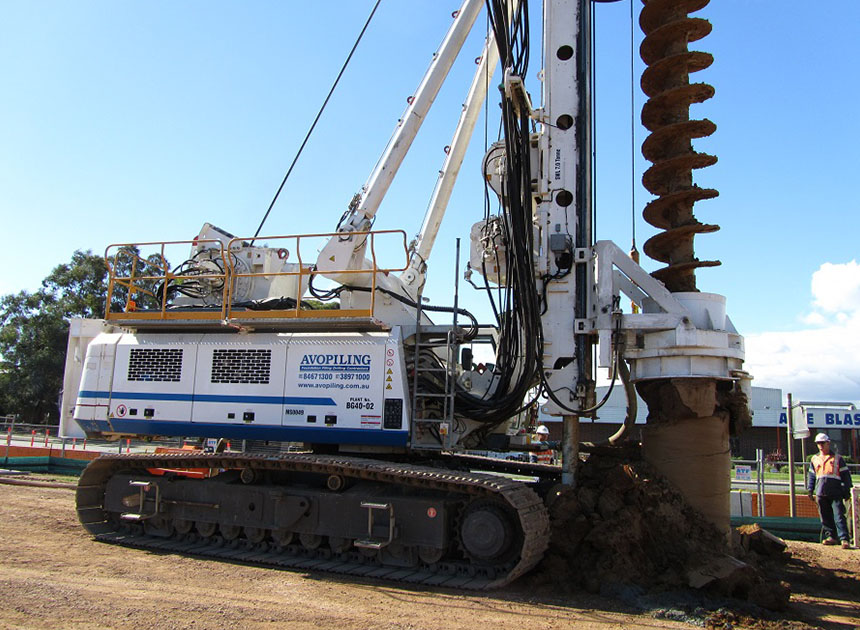

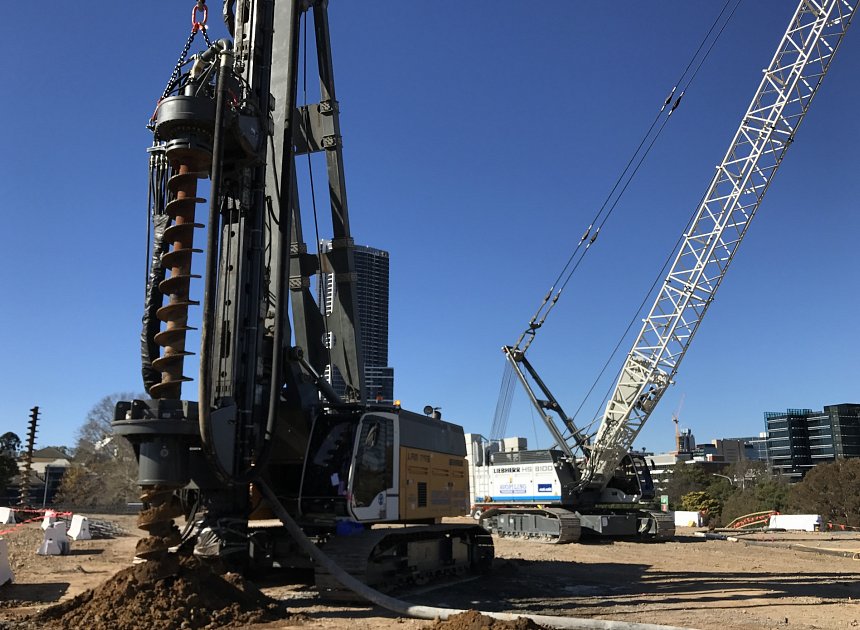

    • Bauer BG40 with CFA setup

      Bauer BG40 with CFA setup

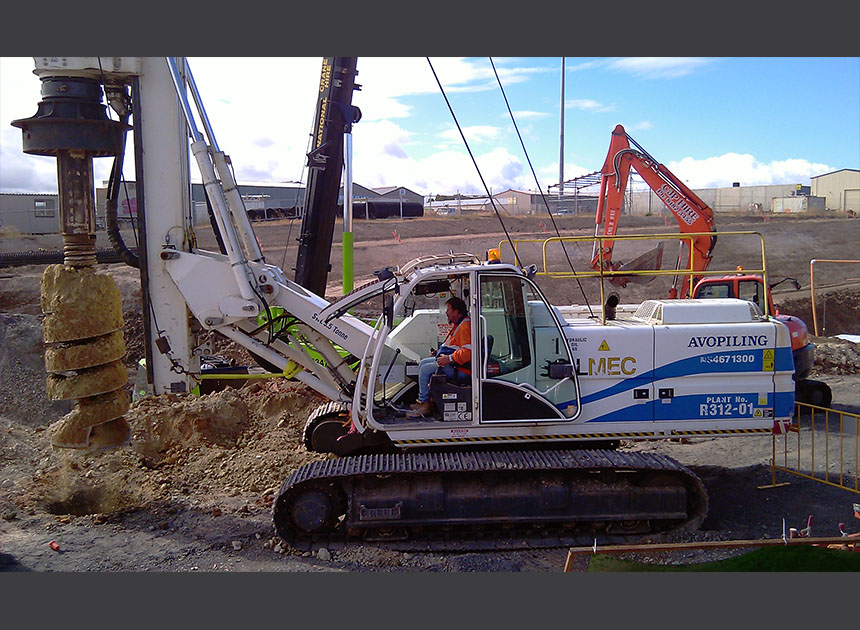

    • Self erecting Soilmec R312 at Seaford Rail Project in Adelaide

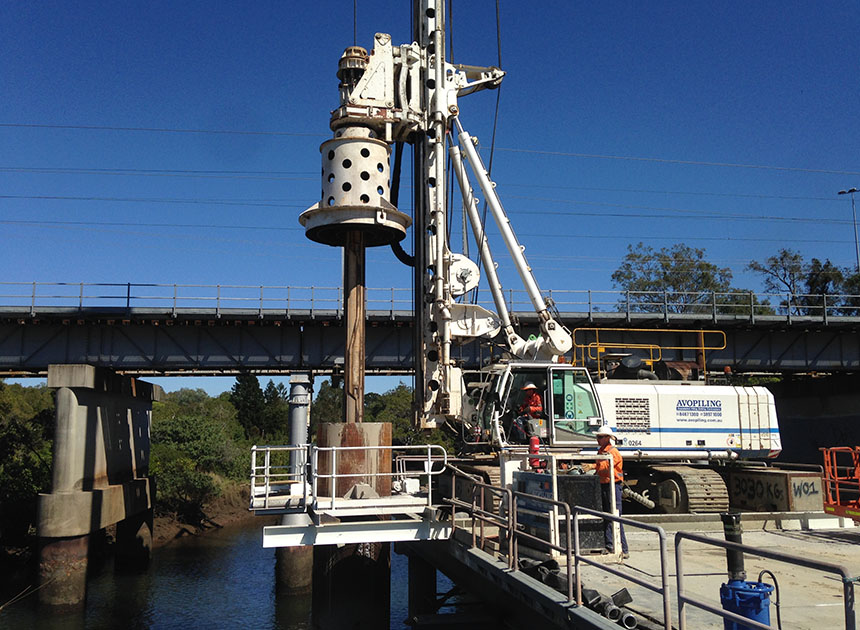

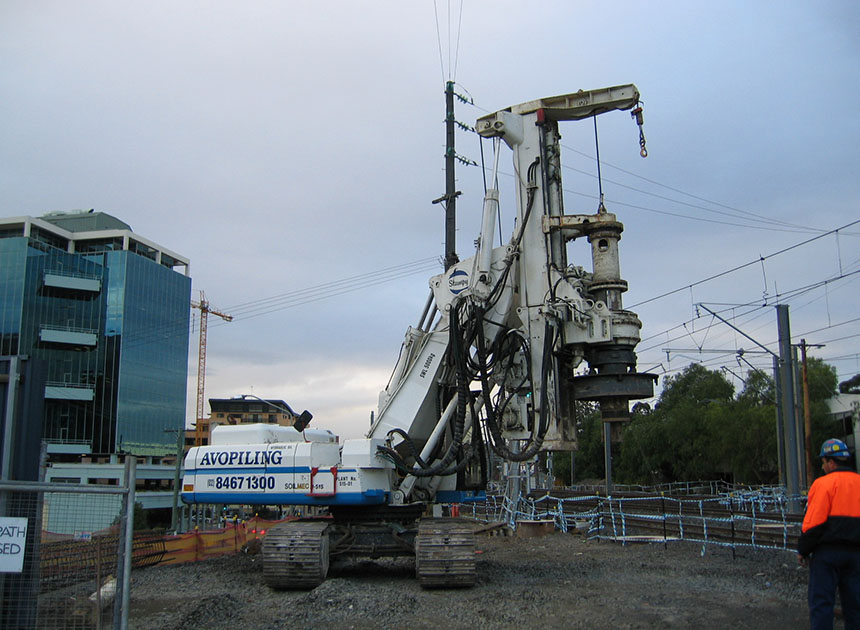

    • "Stumpy" R516 underneath powerlines.

    • Bauer BG28 with CSM setup - multi functionality

      Bauer BG28 with CSM setup - multi functionality

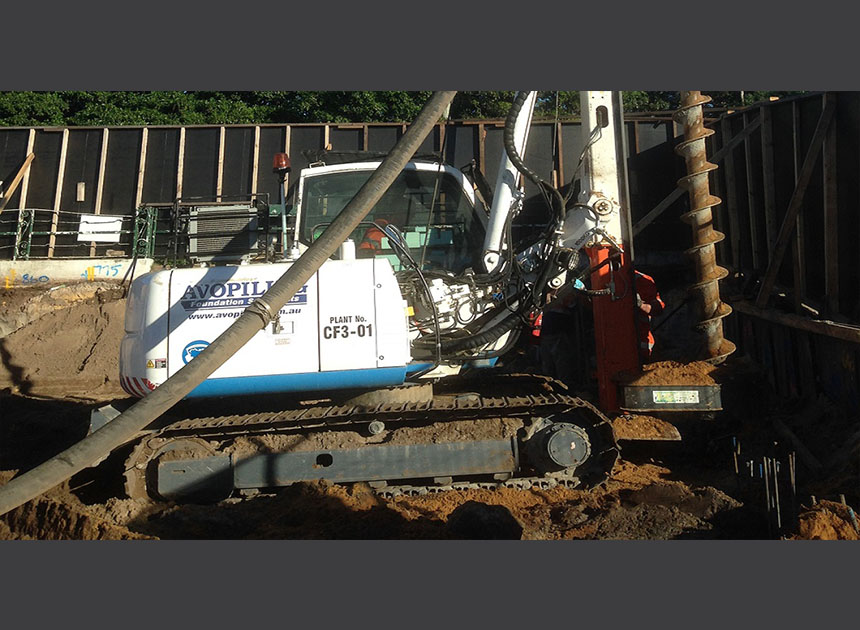

    • Tescar CF3 with 450mmØ CFA setup

    • Bauer BG28 drilling on Avopiling's fabricated working platform

      Bauer BG28 drilling on Avopiling's fabricated working platform

    • Soilmec R930 drilling 600mmØ bored piers at Barangaroo Headland Park

      Soilmec R930 drilling 600mmØ bored piers at Barangaroo Headland Park

    • Bauer BG40 drilling 1.8m dia. piles into 300MPa material

      Bauer BG40 drilling 1.8m dia. piles into 300MPa material

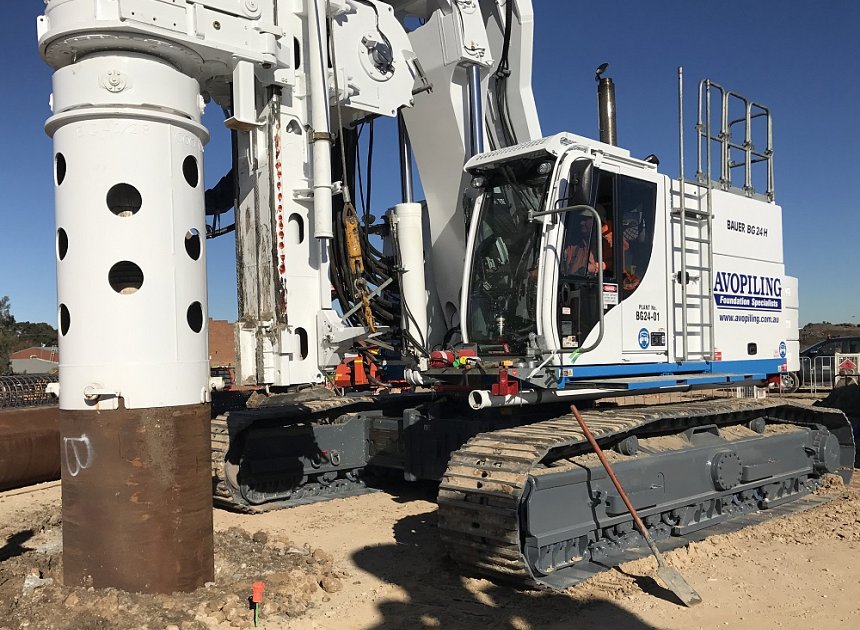

    • Bauer BG 24 drilling 1200mmØ piles

      Bauer BG 24 drilling 1200mmØ piles

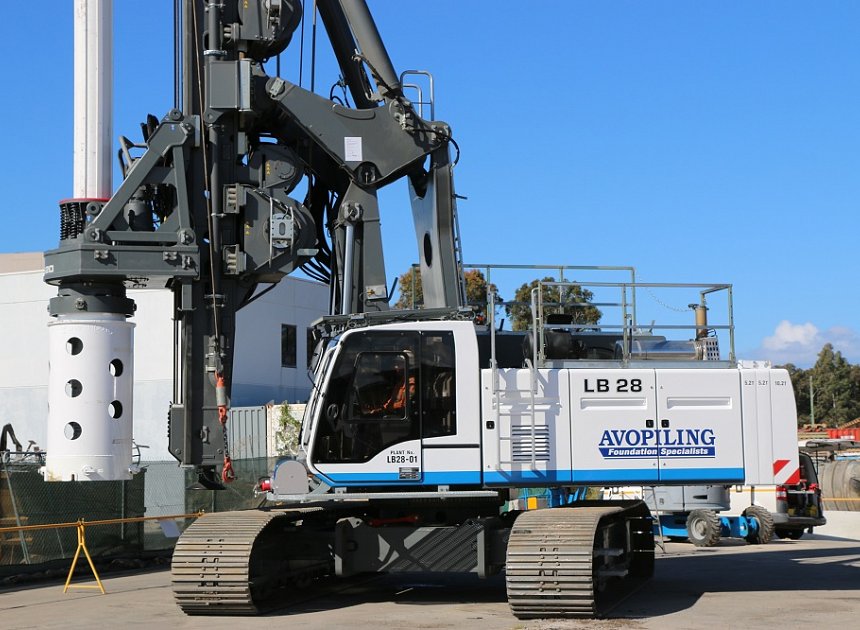

    • Liebherr LB28

    • Liebherr 255 in CFA mode

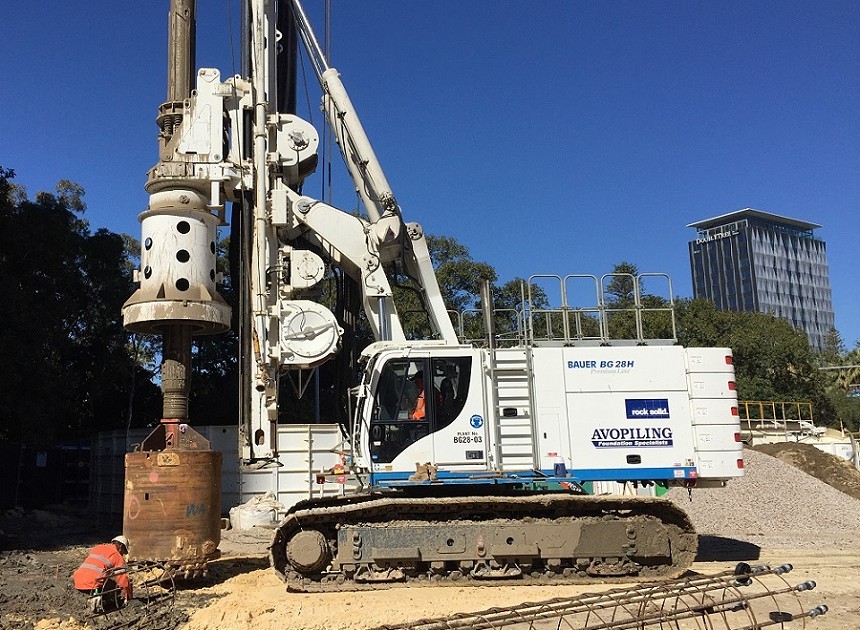

    • Bauer BG28H

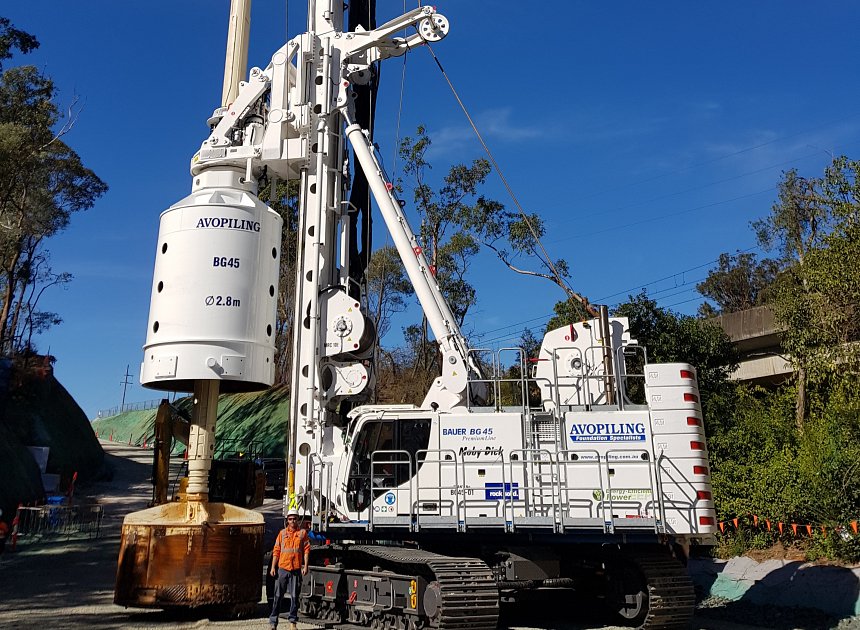

    • Bauer BG45

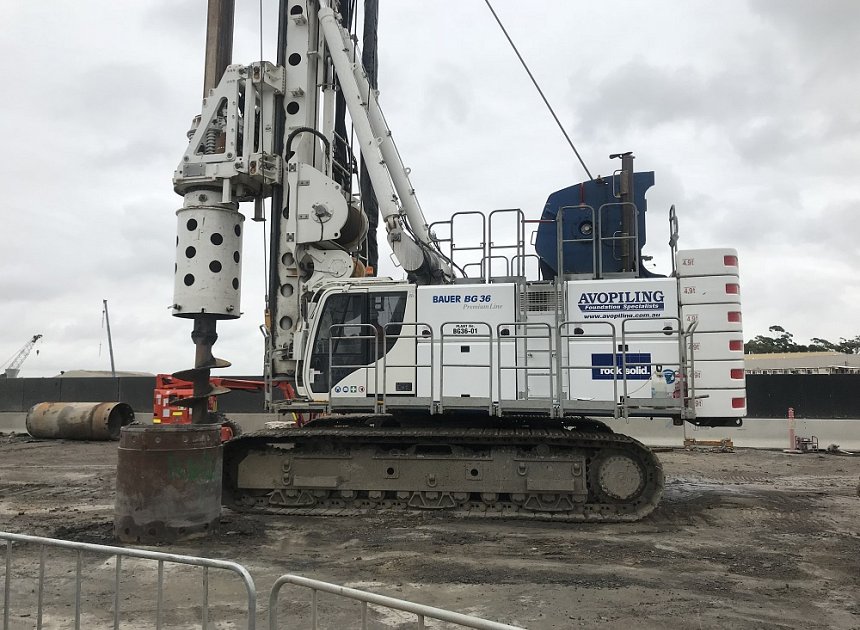

    • Bauer BG36

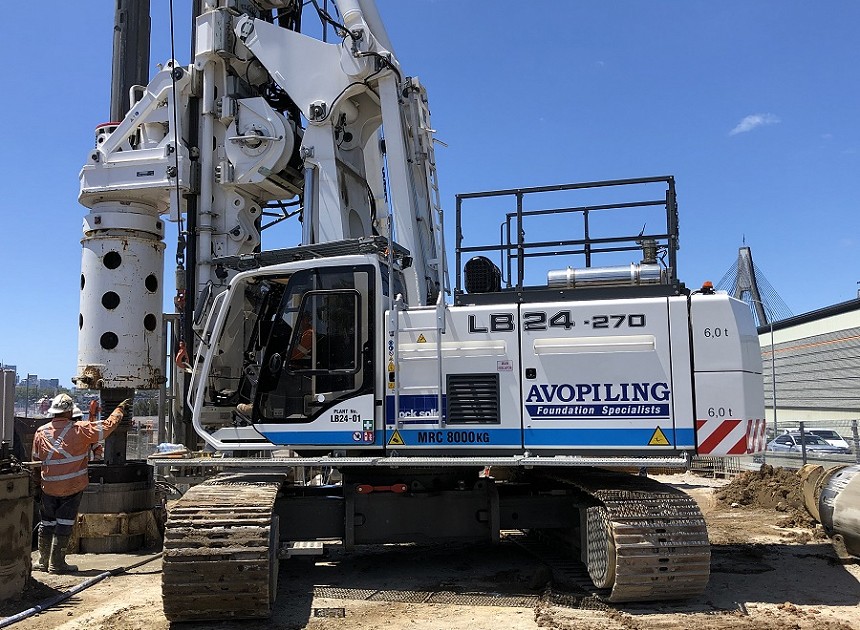

    • LB24 at Rozelle Big Cheese

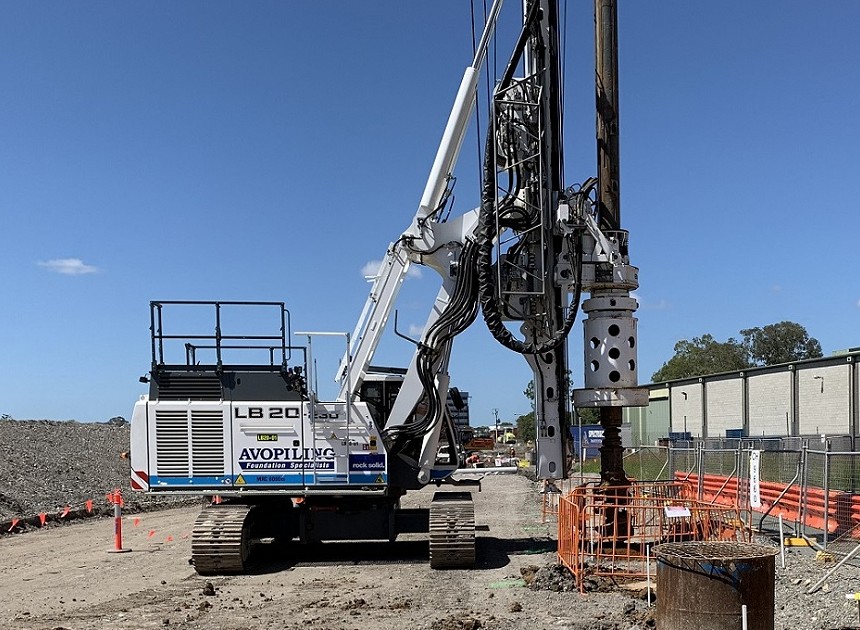

    • LB20-01 at WA

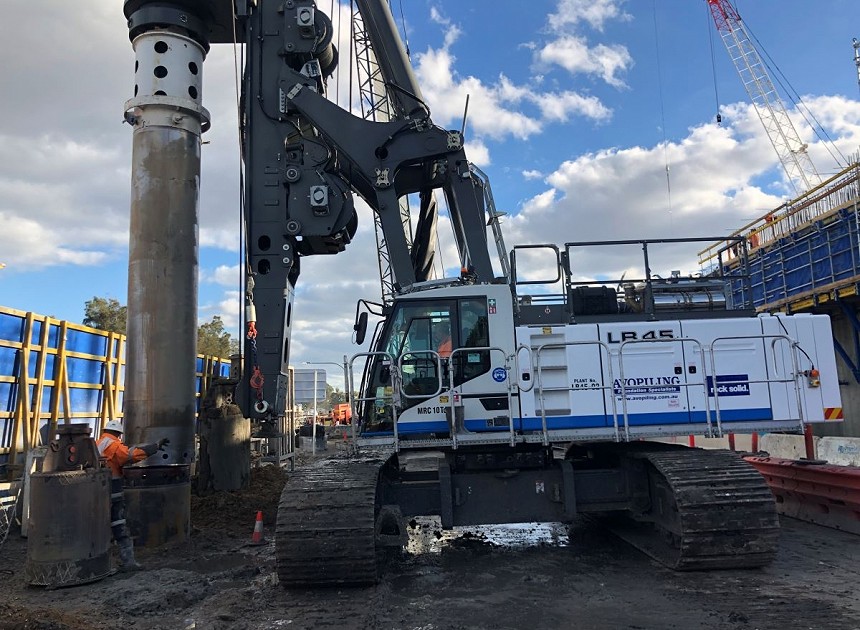

    • LB45-02 at Westconnex Stage 3B Rozelle Interchange

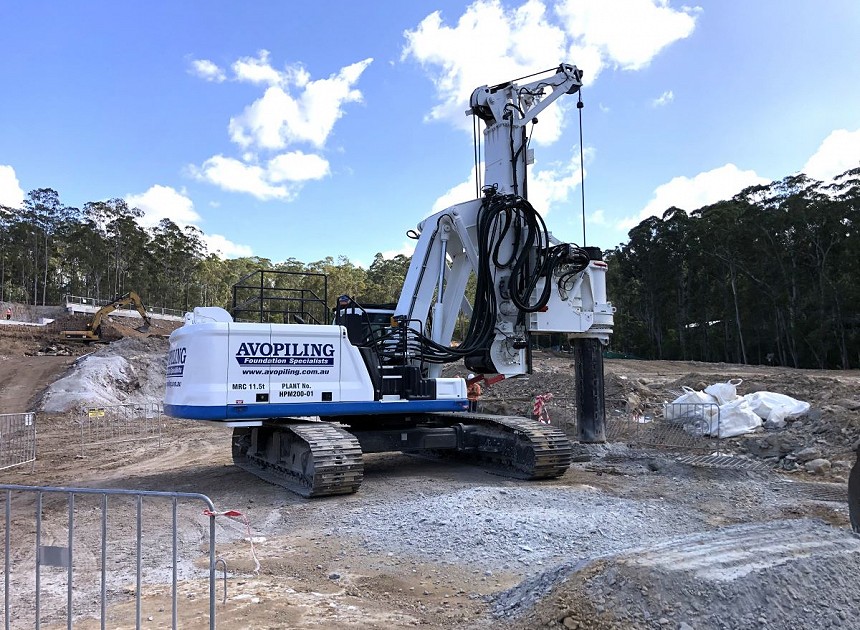

    • HPM 200 at Coonara Ave Project

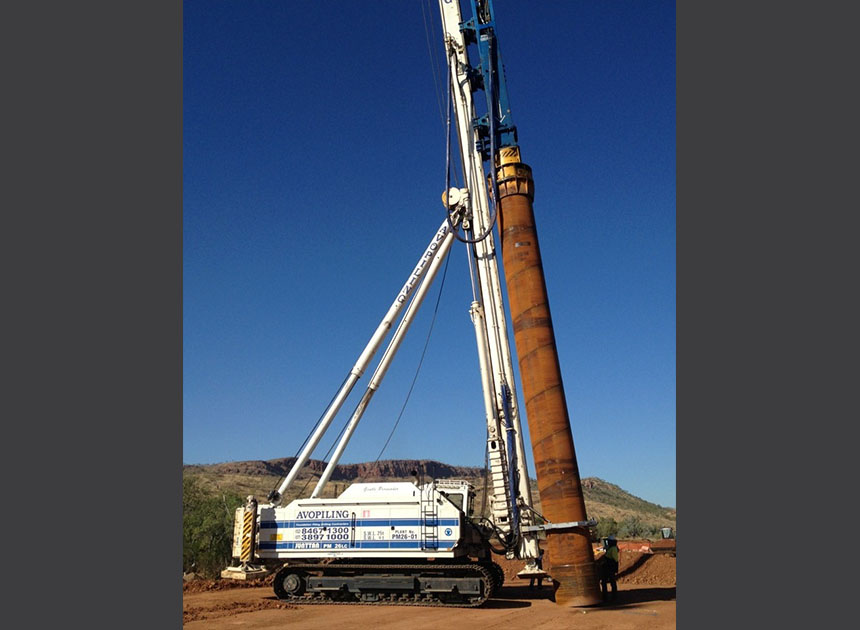

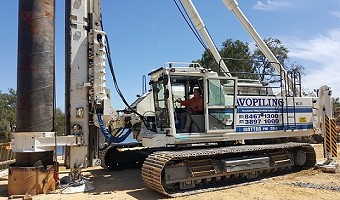

  • Driven Pile Rigs

    Aside from suspended hammers to drive piles, Avopiling utilizes a Junttan PM26 and a Liebherr LRB255 piling rigs. These rigs can drive precast concrete or steel section piles of up to 23 m in a single length and greater in jointed lengths. The Junttan PM26 may be fitted with Junttan impact hammers of 5, 7 or 9 tonnes and or a 14 tonne Dematec hammer. The 40VML vibratory hammer and the BSP H110 impact hammer may be fitted to the Liehberr 255 rig to drive sheet piles, concrete and steel piles

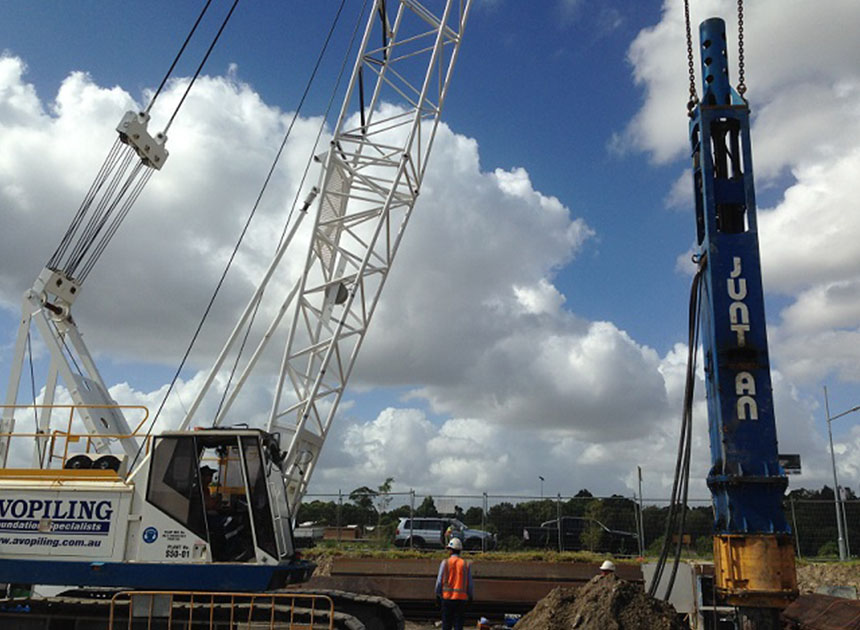

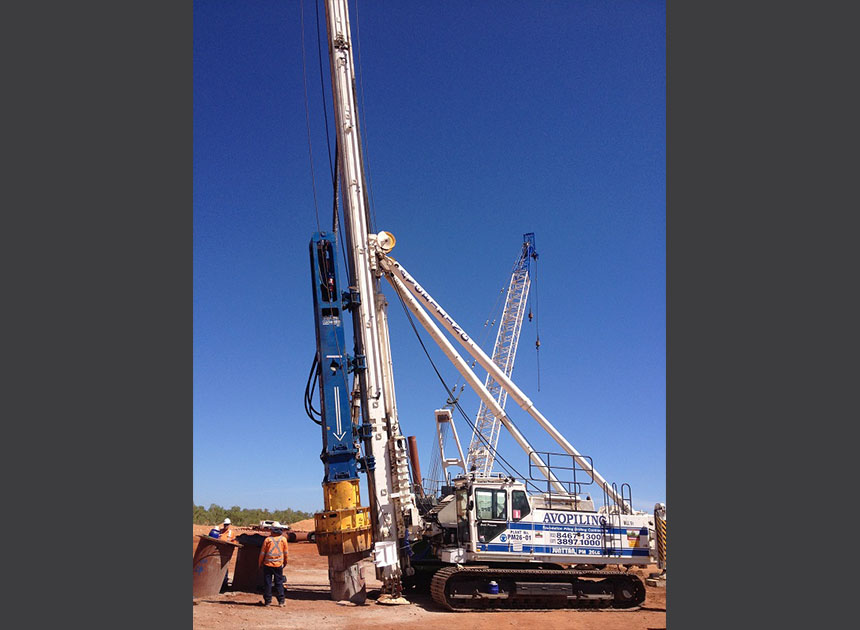

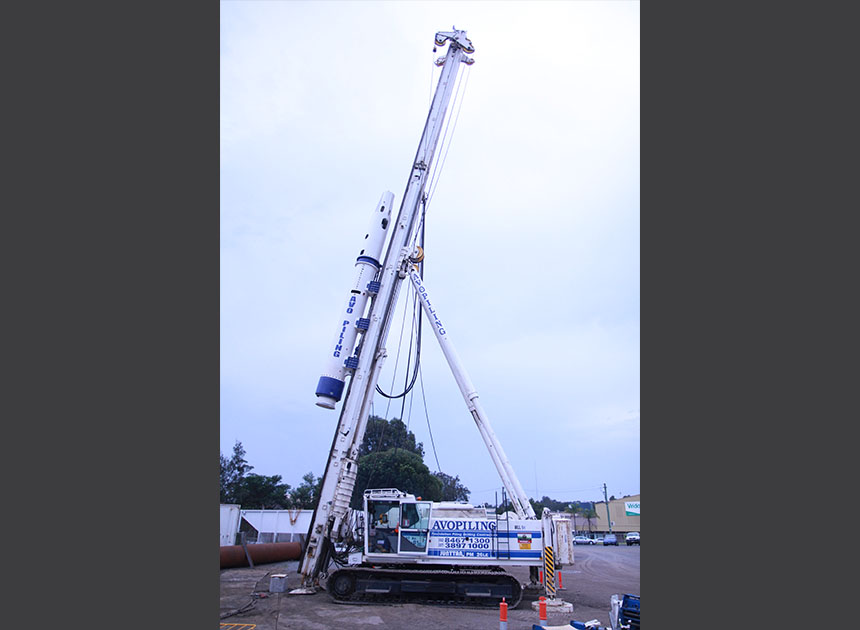

    • Junttan PM26 mounted with 9 tonne hammer

      Junttan PM26 mounted with 9 tonne hammer

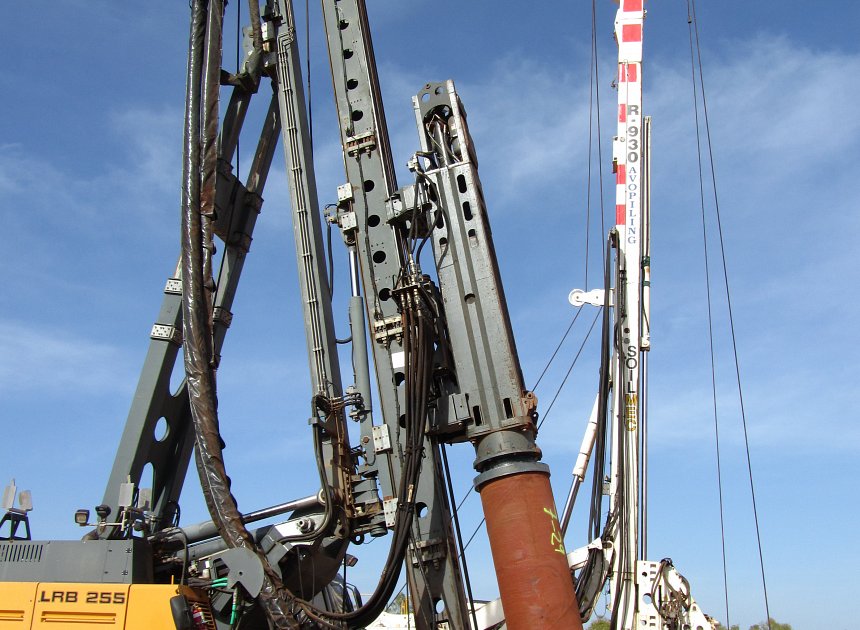

    • Liebherr LRB255 mounted with 9 tonne hammer

      Liebherr LRB255 mounted with 9 tonne hammer

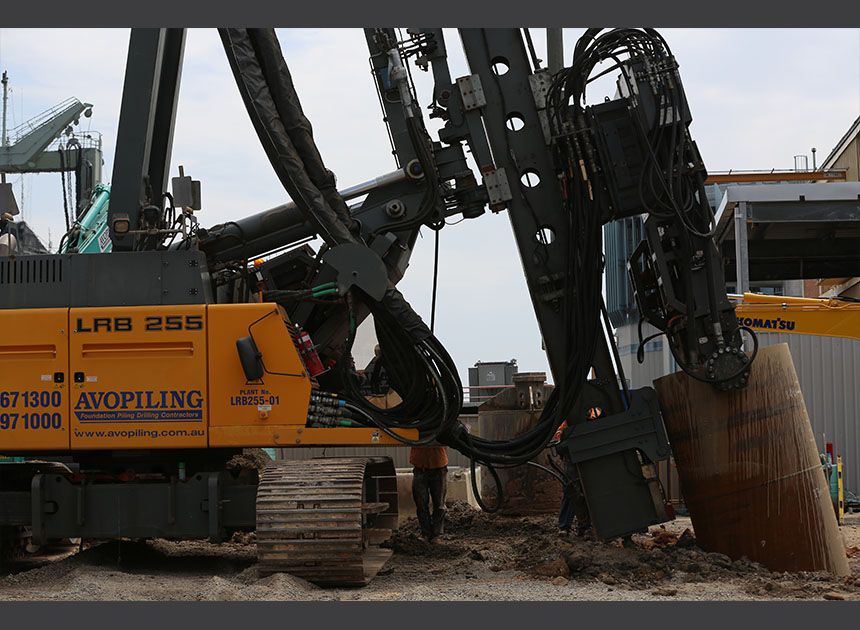

    • Liebherr LRB255 mounted with 40VML vibratory hammer

      Liebherr LRB255 mounted with 40VML vibratory

    • Junttan PM26 mounted with 9 tonne hammer

      Junttan PM26 mounted with 9 tonne hammer

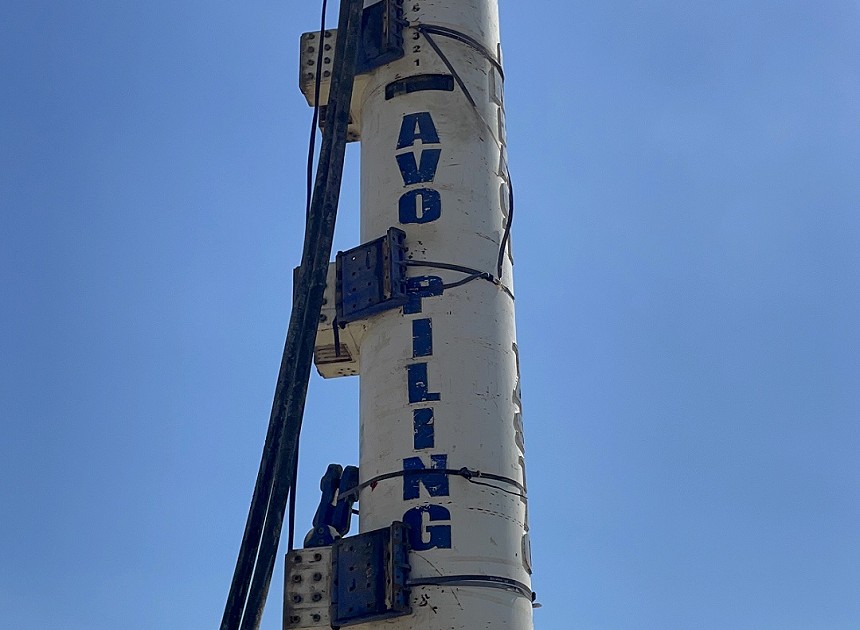

    • Junttan PM26 mounted with 14 tonne hammer

      Junttan PM26 mounted with 14 tonne hammer

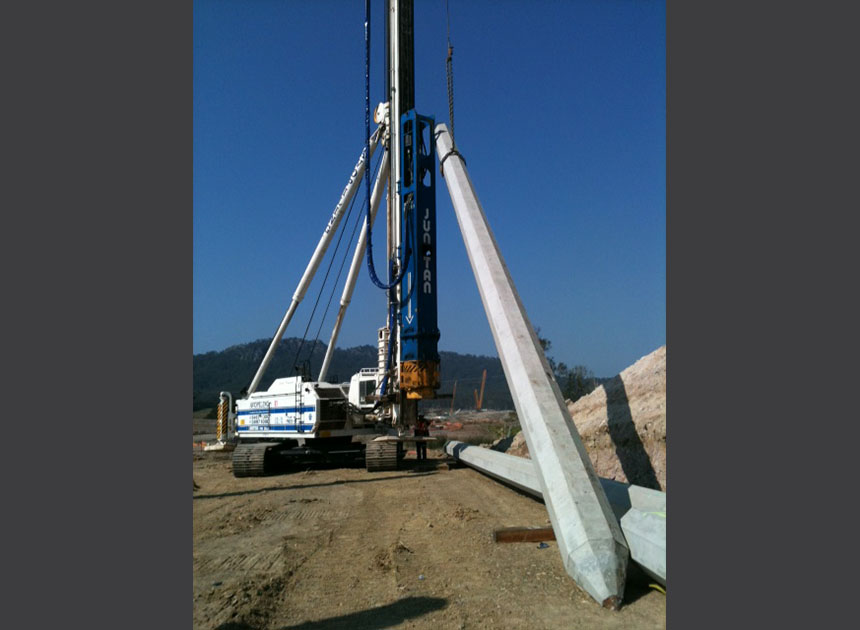

    • Junttan PM26 pitching and driving 550 octagonal PSPC piles

      Junttan PM26 pitching and driving 550 octagonal PSPC piles

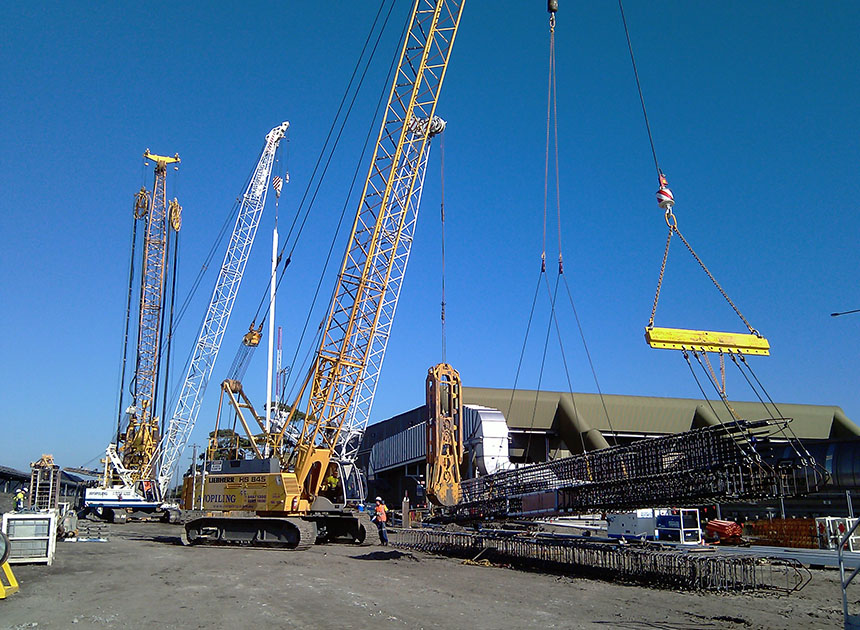

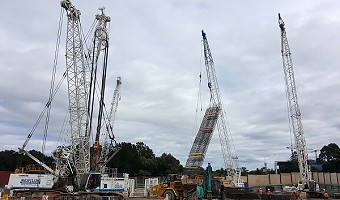

  • Cranes

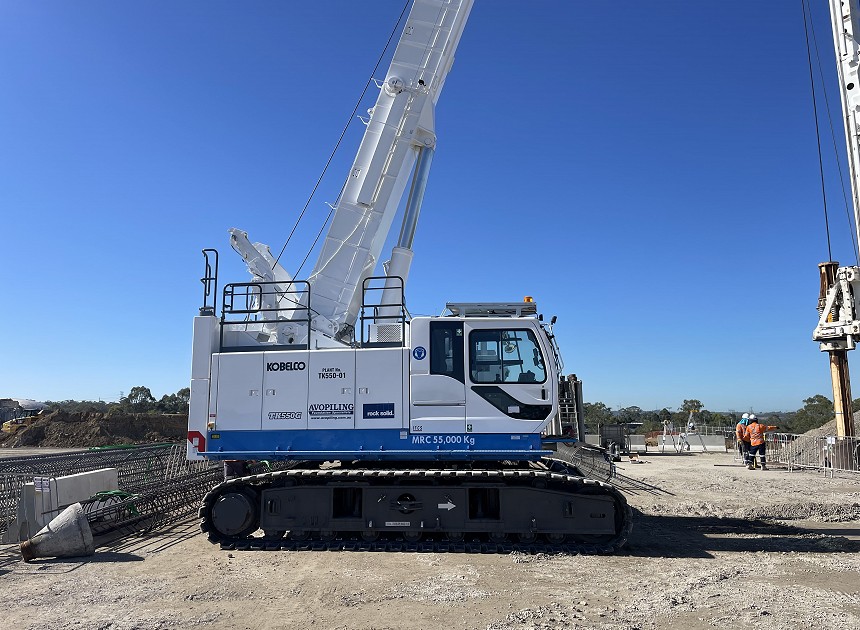

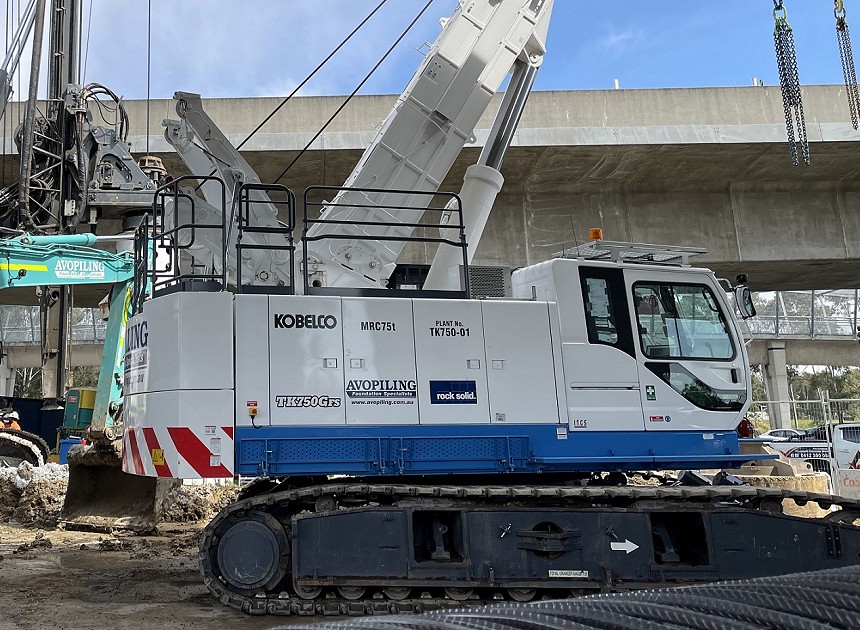

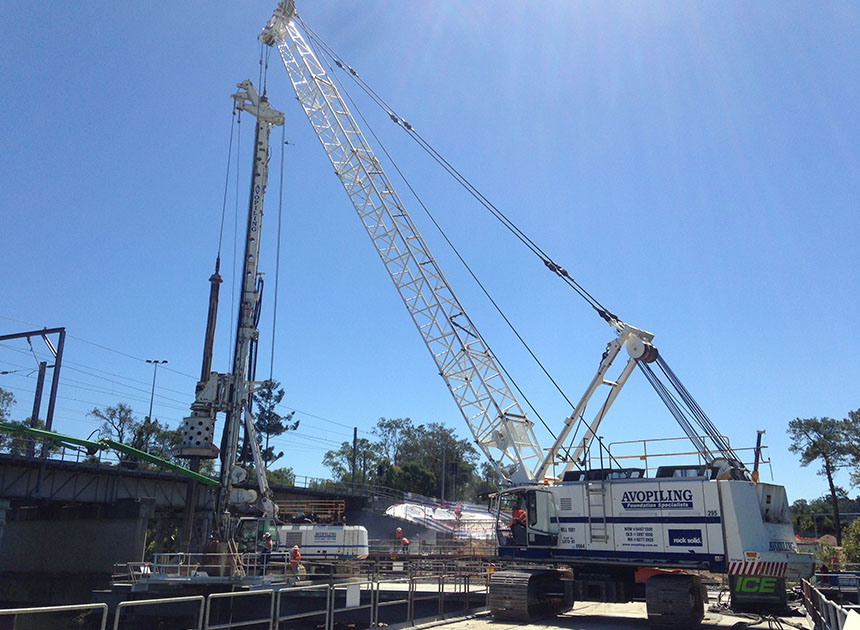

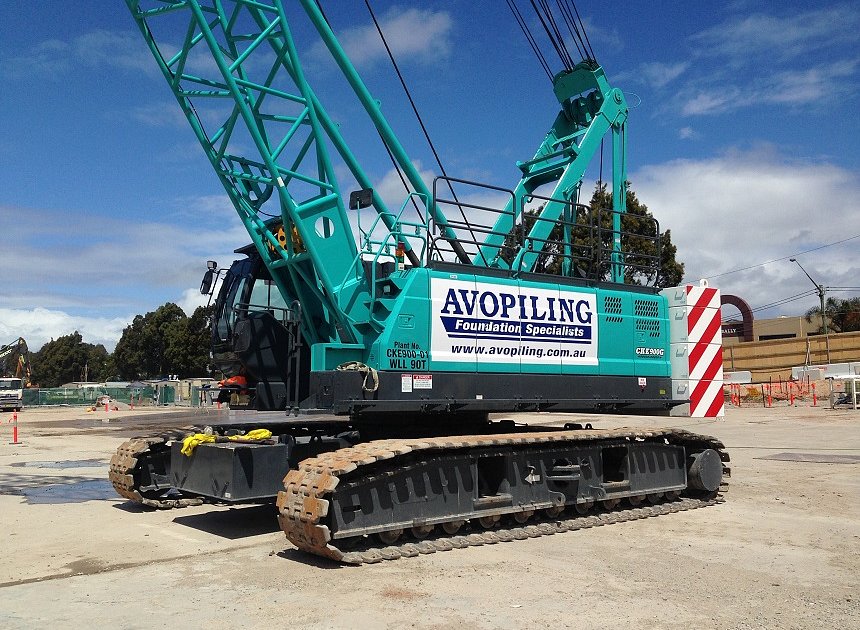

    Avopiling has a large fleet of service cranes ranging from a 35t Hitachti to 120t Liebherr HS series to 250t Kobelco G series crawler cranes.

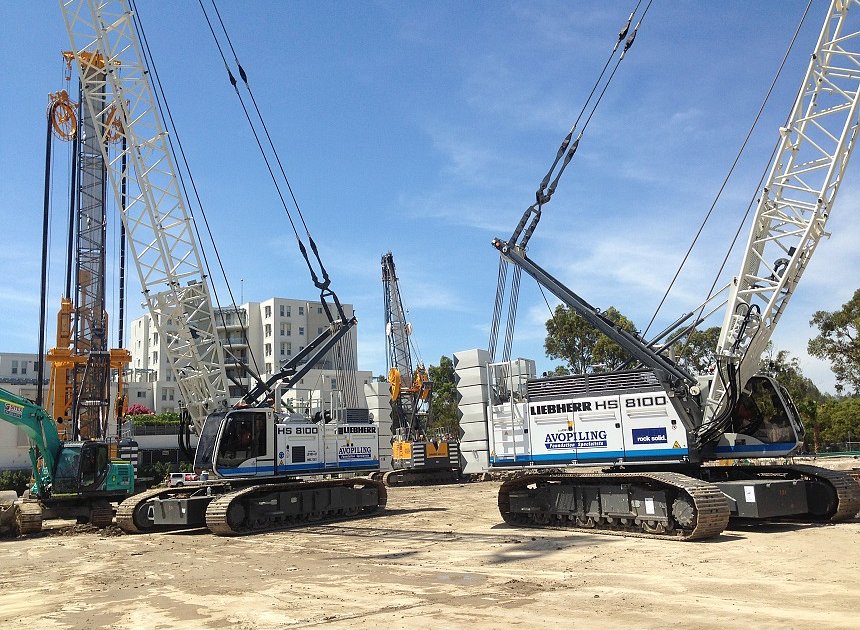

    • Liebherr HS 8100's at Wentworth Point

    • Moreton Bay Rail Link Project in QLD

    • Avopiling Cranes working at PCWS Kooragang Island Diaphragm Wall

    • 50T crane performing PDA testing at Ermington Project

    • 90T Kobelco at West Connex M5N SPI Project

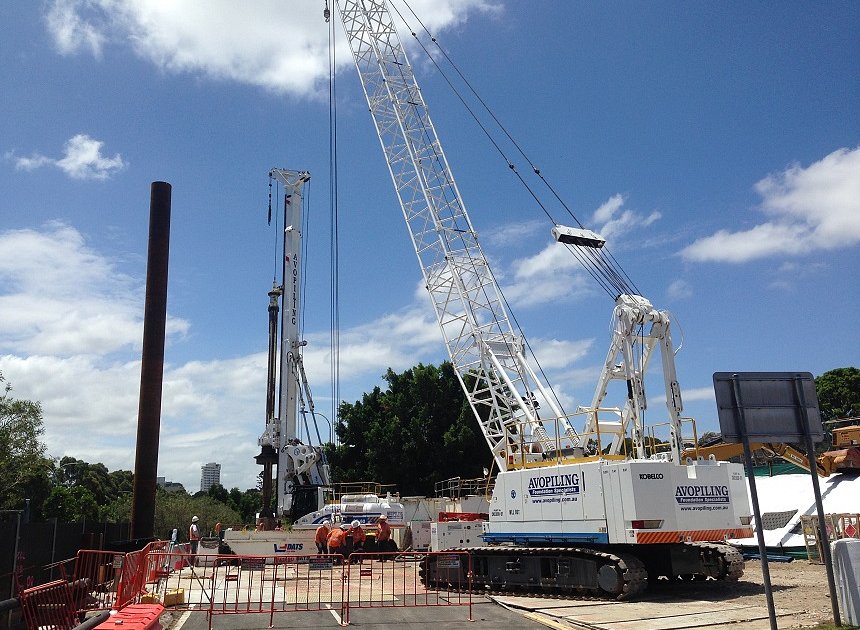

    • 80T Kobelco at Sydney Light Rail Eastern Distributor

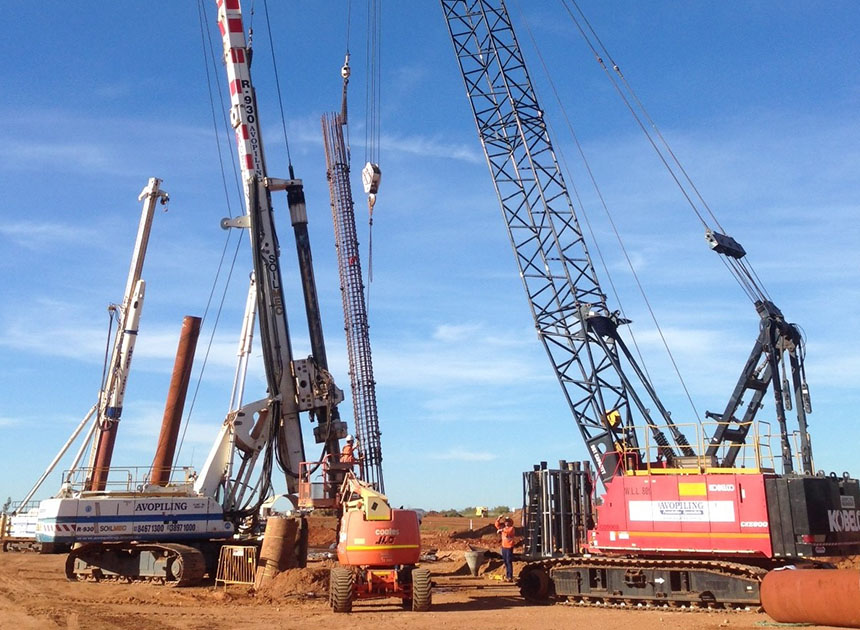

    • 80T crane servicing rake piles at Roy Hill Project in WA

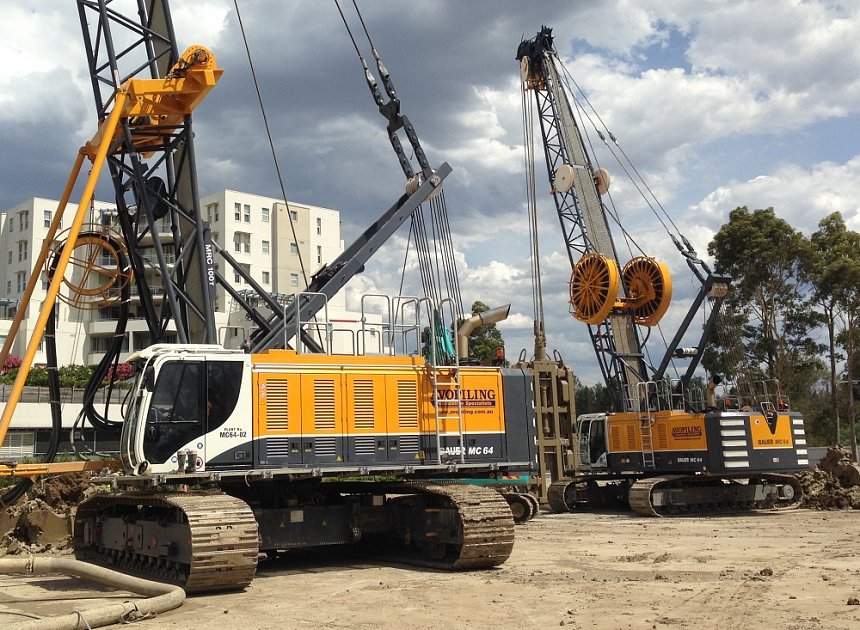

    • MC64's at Wenthworth Point DW

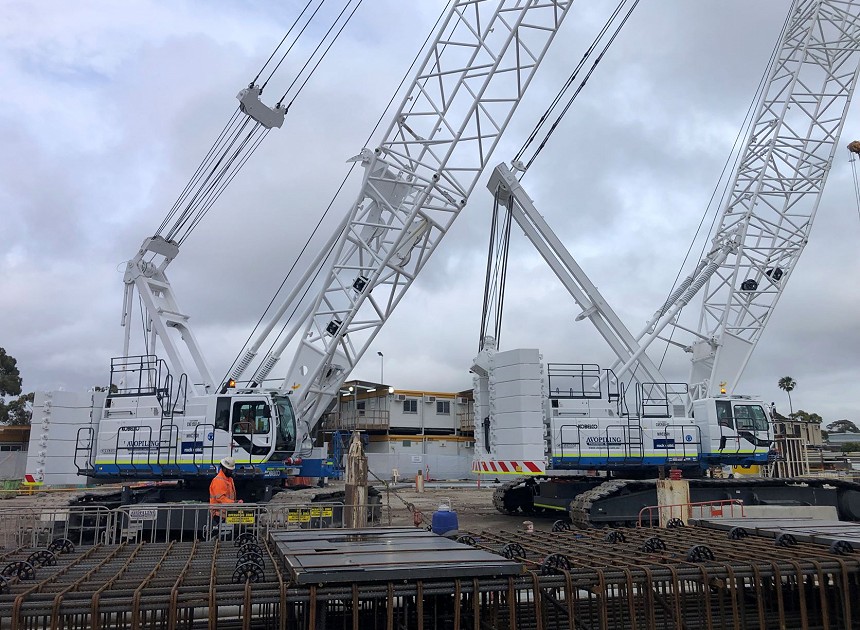

    • Kobelco CKE 2500G and 1350G working side by side

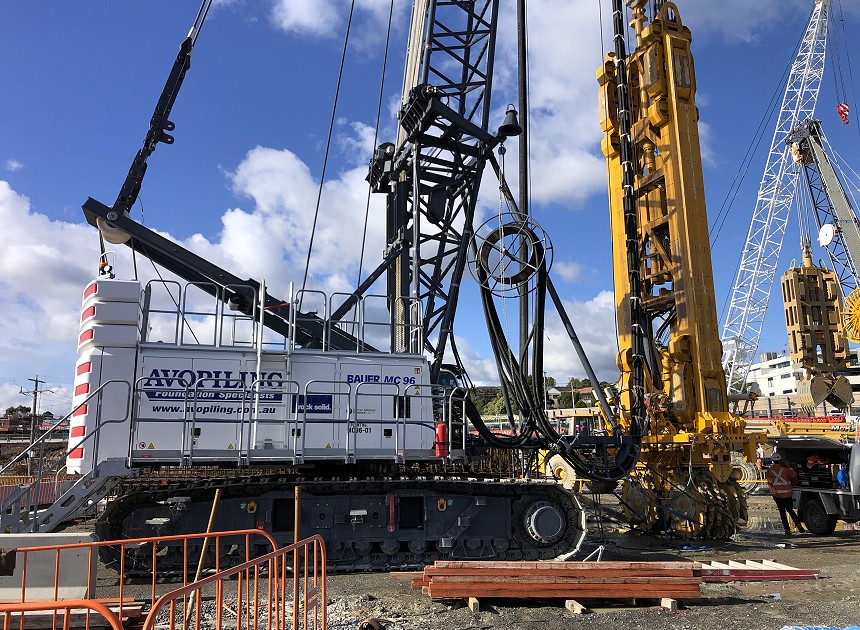

  • Diaphragm Wall Grabs & Cutters

    Avopiling uses a newly acquired Bauer BC35 trench cutter and DHG-V Hydraulic grabs in conjunction with other in house plant items to construct diaphragm walls to a very high level of precision and accuracy.

    We even have decanting systems that can treat bentonite slurries during and after the construciton process to reduce environmental impact.

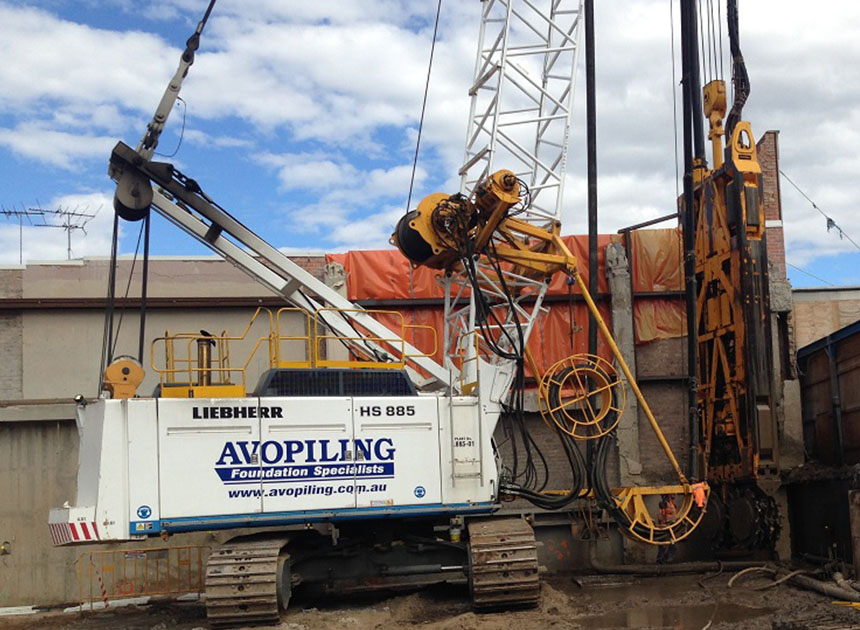

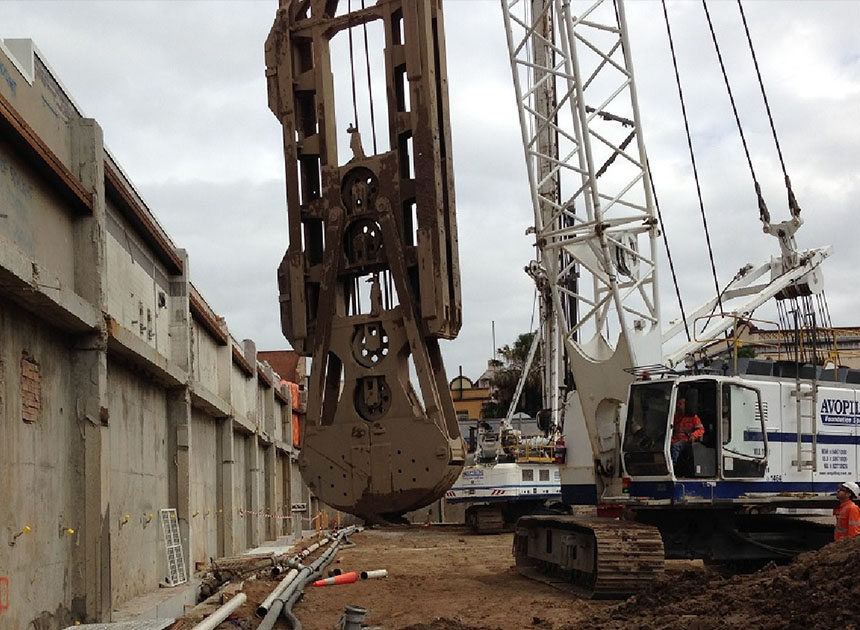

    • Mechanical Grab

    • Hydraulic Grab

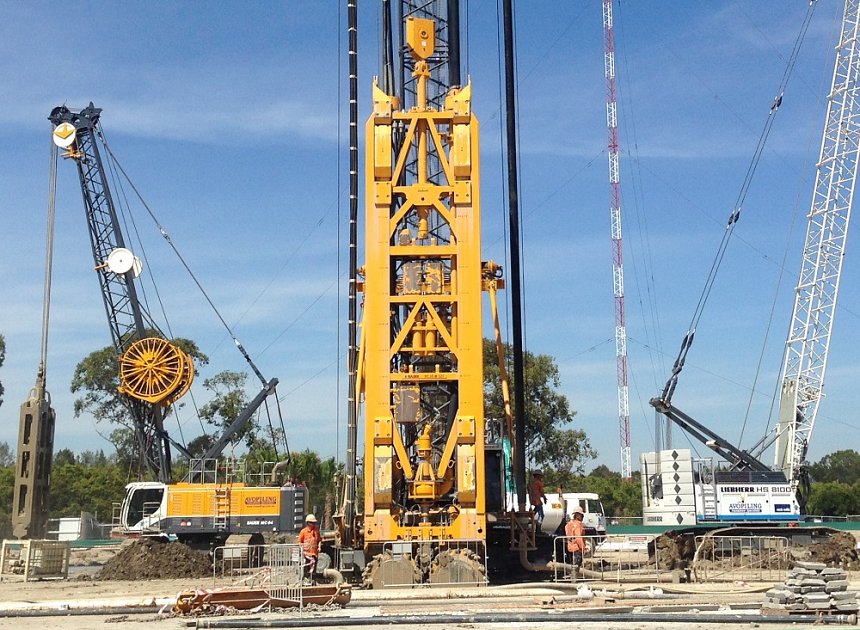

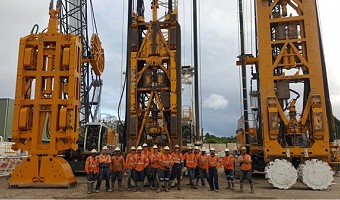

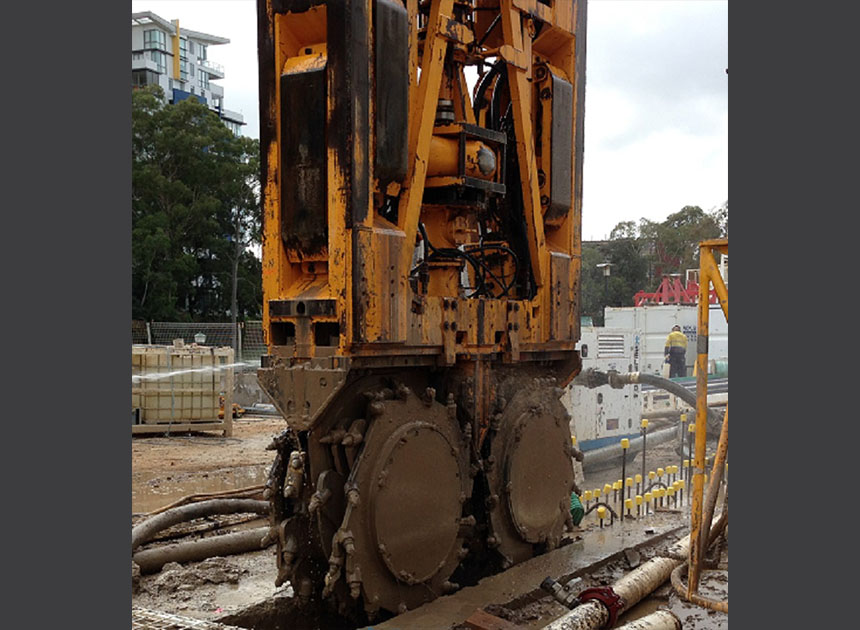

    • BC35 cutter

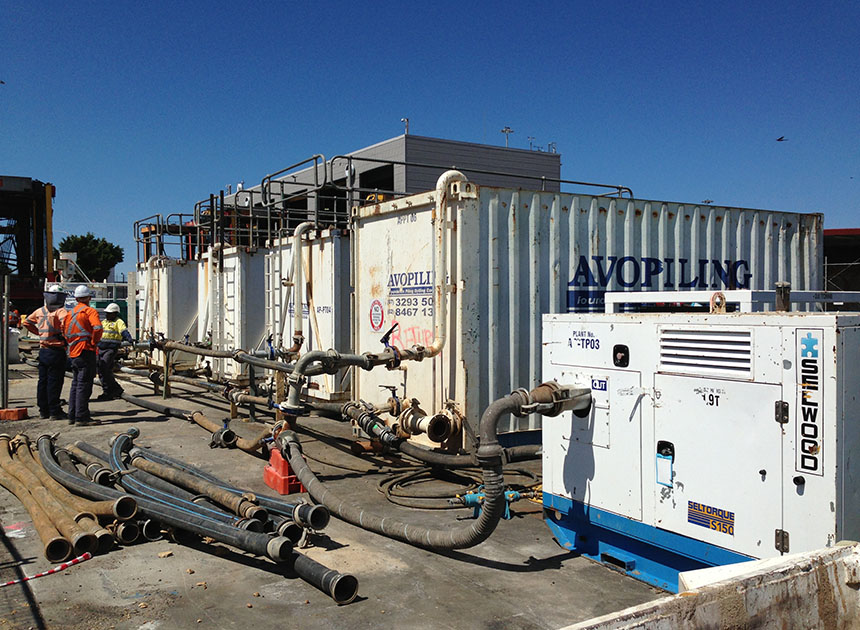

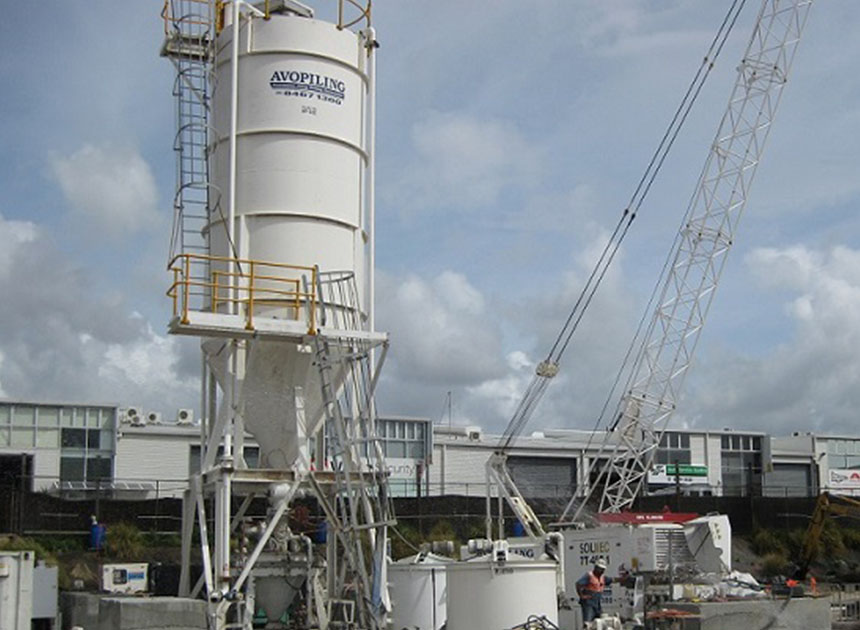

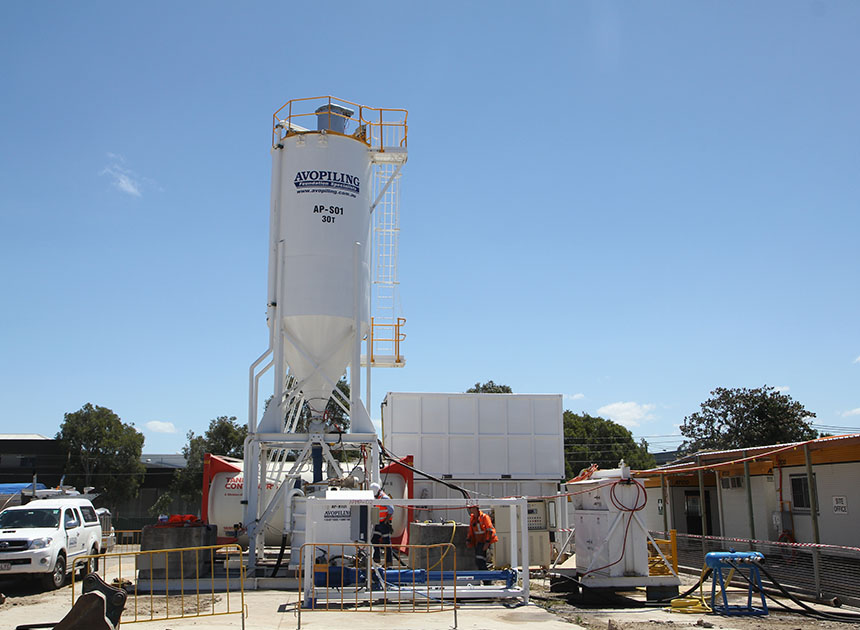

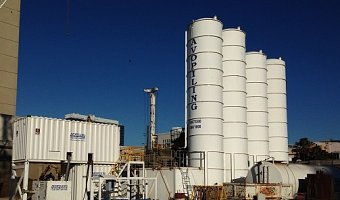

  • Bentonite, polymer and grout plants

    Avopiling have various material batching and treatment plant options available. We are able to tailor our site set up to suit almost any site conditions and requirements, whether that dictates a simple or a complex solution.

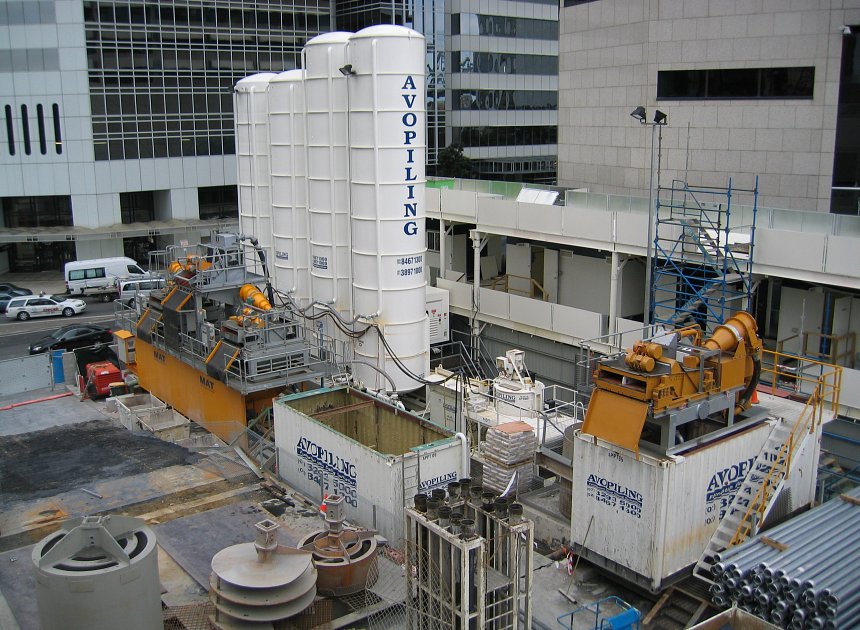

    • Diaphragm Wall plant setup at Church Street, Parramatta

    • Turbo jet system plant setup at Alexandria Australia Post Remediation

    • Cutter Soil Mixing Project Plant Setup at Otto Roseberry Project

    • Polymer Plant setup at Port Botany Ramp D Project

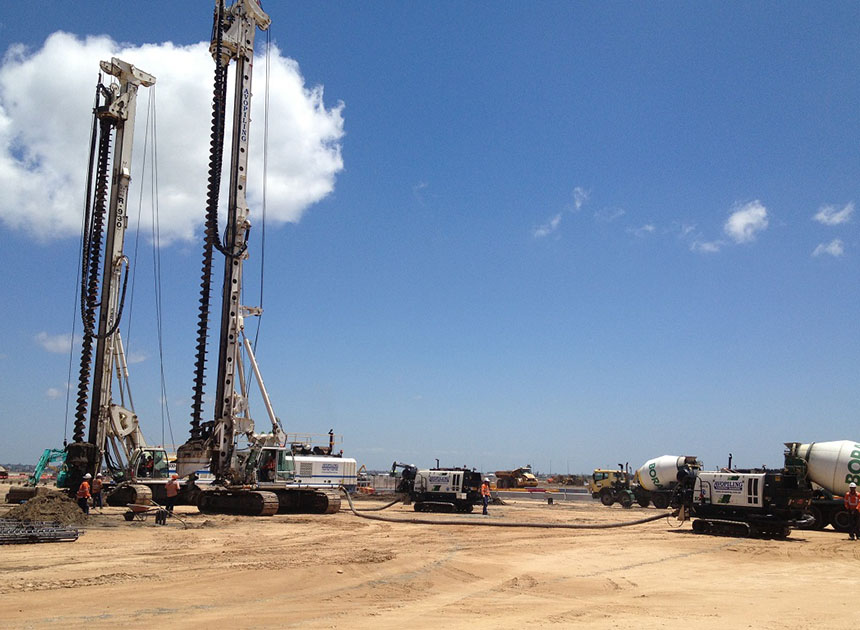

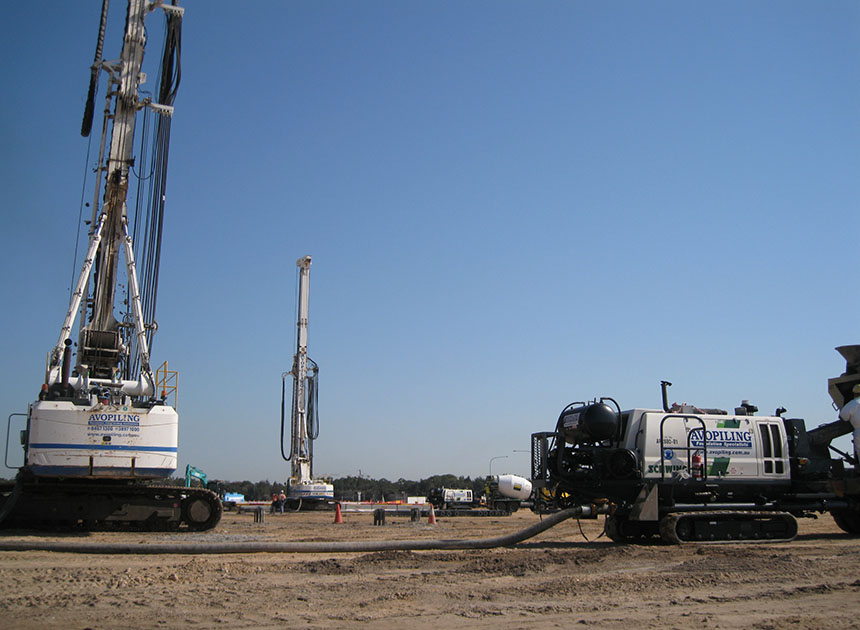

  • Concrete Pumps

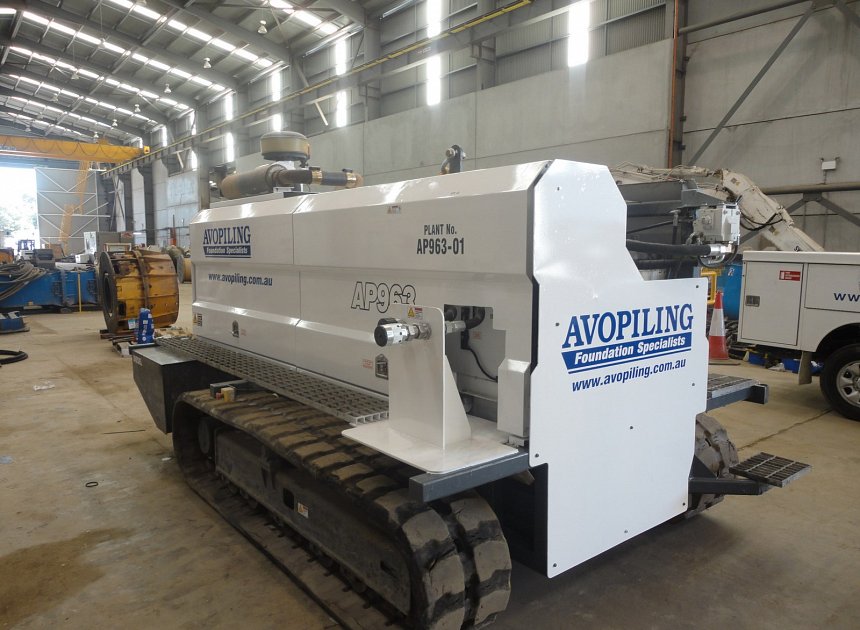

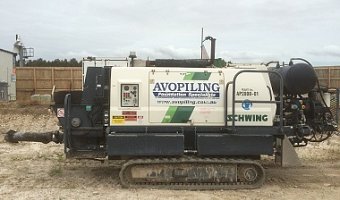

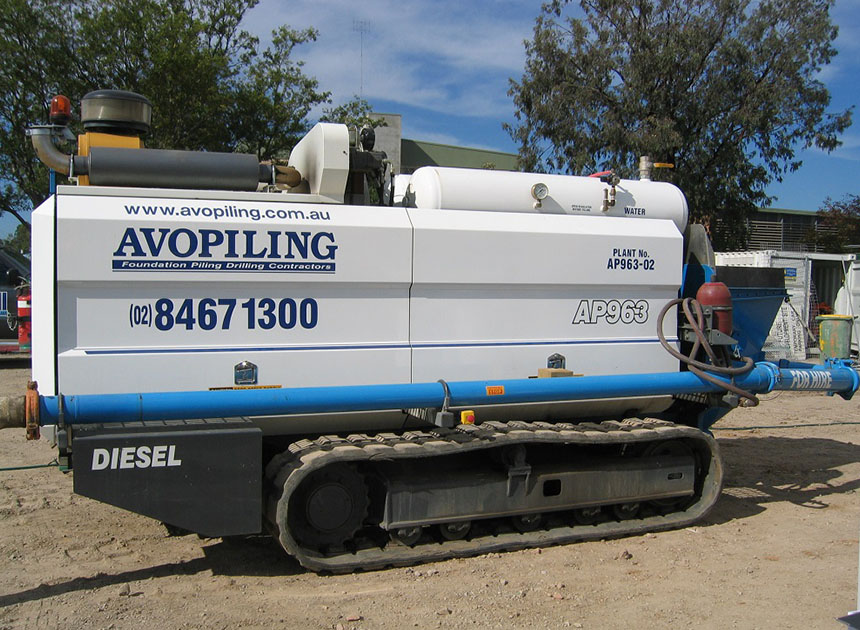

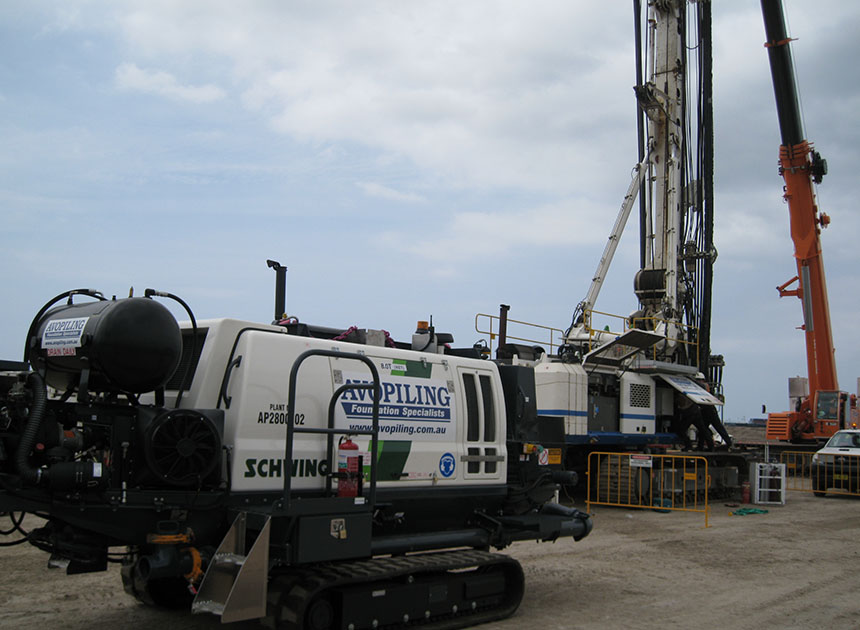

    Avopiling owns a fleet of state of the art concrete pumps that are well regarded throughout the construction industry. We have been instrumental in developing in collaboration with Schwing Australia a pump that is tailor made for the CFA and DDP piling market, whilst remaining suitable for any other concrete pumping application. Avopiling also utilizes concrete pumps that were designed and manufactured by Avopiling. We were able to do this through our world class workshop facilites.

  • Ancillary Equipment

    Avopiling have an array of tools and ancillary equipment to suit design and site requirements. Our drilling tools i.e augers, rock and slide buckets are superior, designed and built in our workshop in Unanderra, NSW. We have also Leffer's Spherical Grab and coring tools of various dimensions to suit all types of soil and rock.

    Avopiling utilizes its own excavators, welding machines, air compressors, impact and vibratory hammers, power packs and various pumps to support majority of its piling operations.

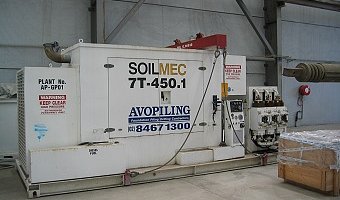

    • High Pressure grout pump

      High Pressure grout pump

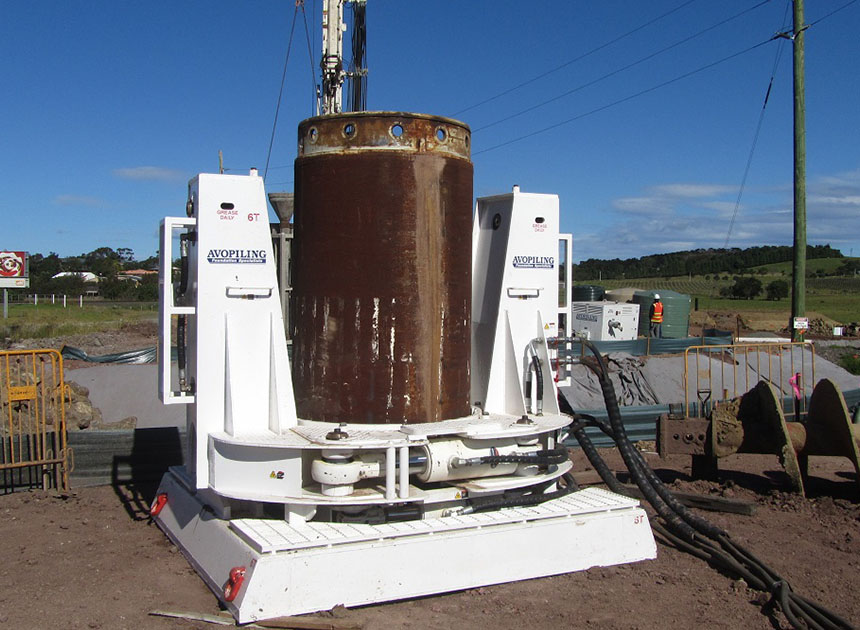

    • Casing extractor - designed and manufactured inhouse

      Casing extractor - designed and manufactured inhouse

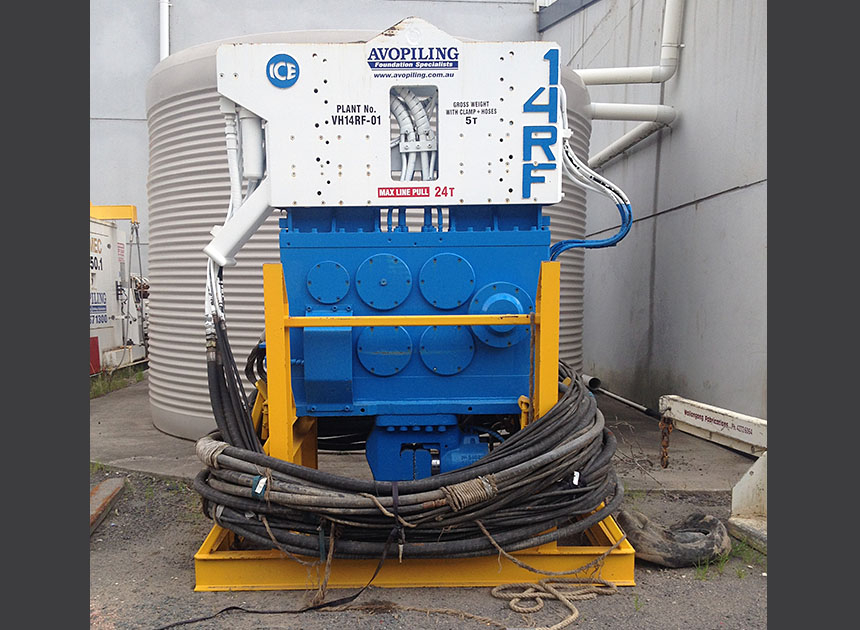

    • ICE 14RF resonance free vibratory hammer

      ICE 14RF resonance free vibratory hammer

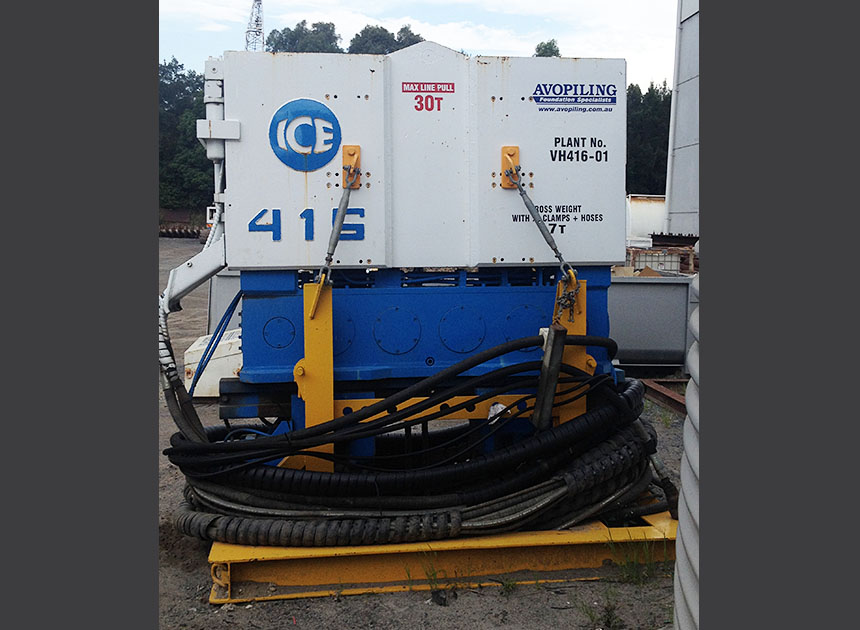

    • ICE 416 vibratory hammer

      ICE 416 vibratory hammer

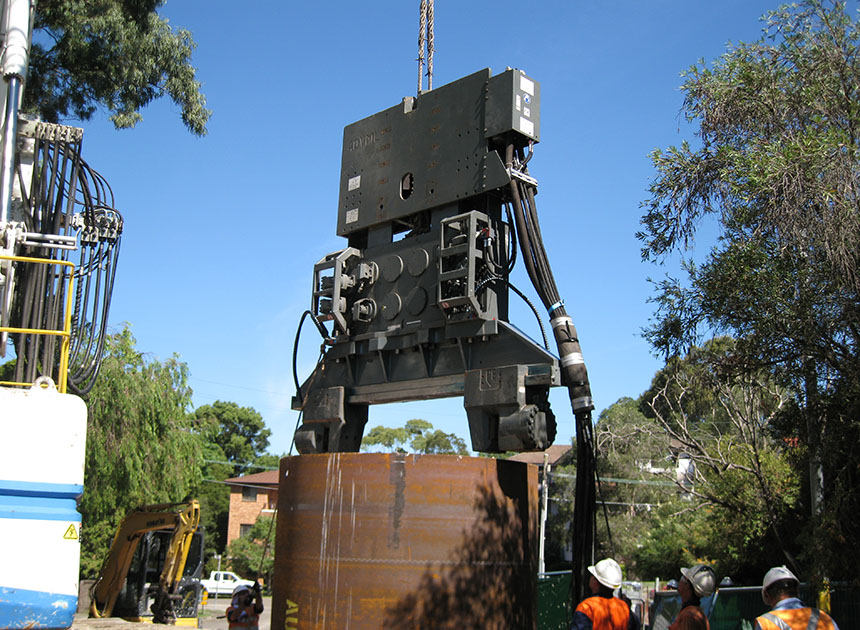

    • 40 VML driving 2.55 dia casing  in Carlton, NSW.

      40 VML driving 2.55 dia casing in Carlton, NSW.

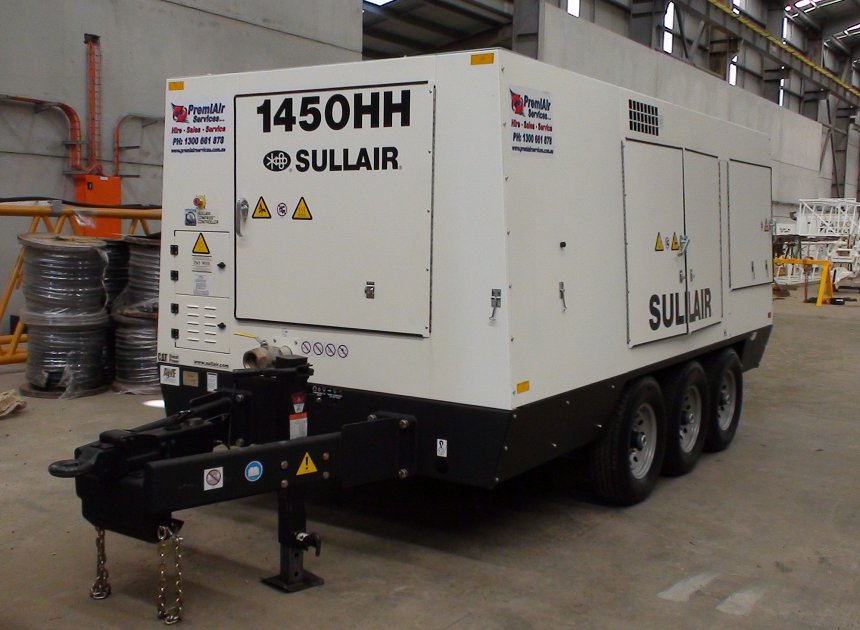

    • 1450 CFM air compressor utilised for DTHH applications

      1450 CFM air compressor utilised for DTHH applications

    • Track mounted hydraulic power pack.

      Track mounted hydraulic power pack.

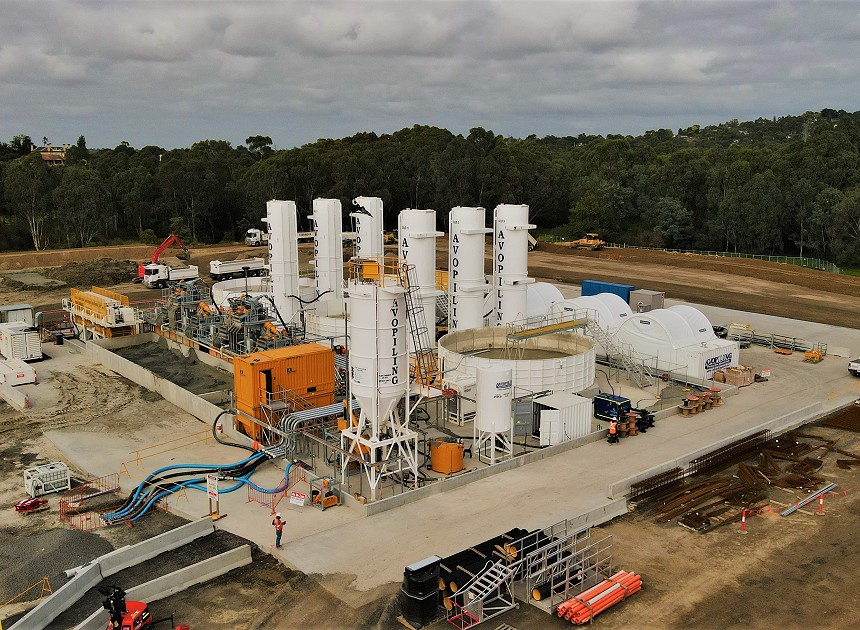

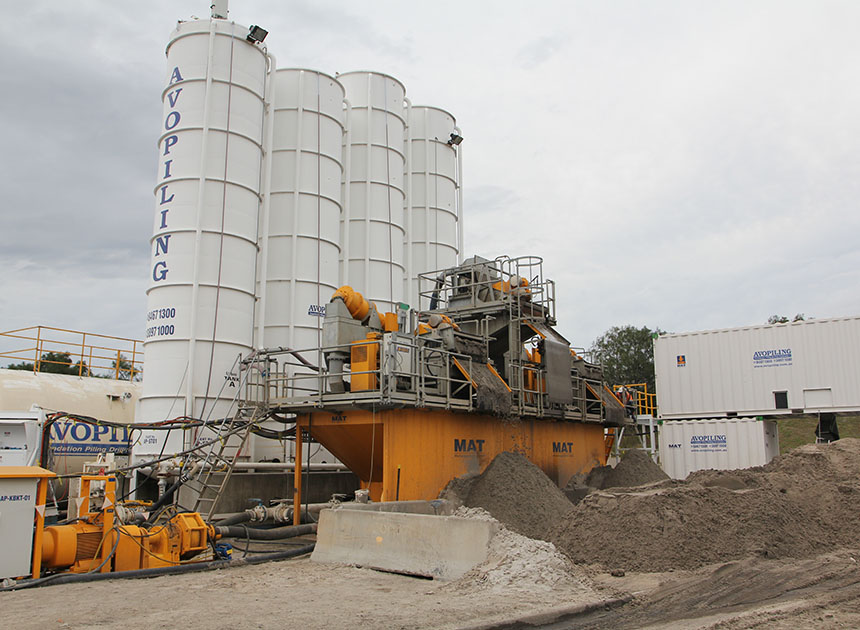

    • Bentonite plant and desanding units able to process 500m³ of slurry per hour

      Bentonite plant and desanding units able to process 500m³ of slurry per hour
