Driven Piles

Driven Piles are of various shape make and sizes, these consist precast concrete, round steel casings, tubular steel casings, steel H sections, composite piles and timber piles.

Depth - depending ground conditions.
Hydraulic and Air powered Impact Hammers ranging from .6 tonne to 14 tonne (ram block weight).

Hydraulic Vibratory Hammers from 5 tonne to 12 tonne.

Applications

They are a cost effective piling technique and can be used in a variety of soil conditions. Piles can be driven to depths of 50 metres depending on soil conditions and carry high individual loads or can be grouped together for heavier loads. Driven Piles takes away the requirement to remove spoil from site and can therefore be ideal for working in contaminated areas.

Avopiling have hydraulic impact hammers that can drive precast piles. The most significant accomplishment we have achieved is driving of 550 octagonal precast piles and steel tubes 1.55m in diameter to a depth of 39 metres.

In most cases driving of steel casings on certain ground conditions would require us to utilise the hydraulic impact hammer and or vibratory hammers ranging from 6 tonne to 14 tonne (ram weights).

Advantages

The benefits of driven piling systems are the following:

  • Can be installed in virtually all soil conditions.
  • Minimal site preparation.
  • Very quick and precise construction.
  • No spoil removal.
  • Consistent quality, piles can be inspected prior to installation.
  • A variety of different Pile types.
  • Can be installed on a rake.

Coomera to Helensvale Rail Duplication

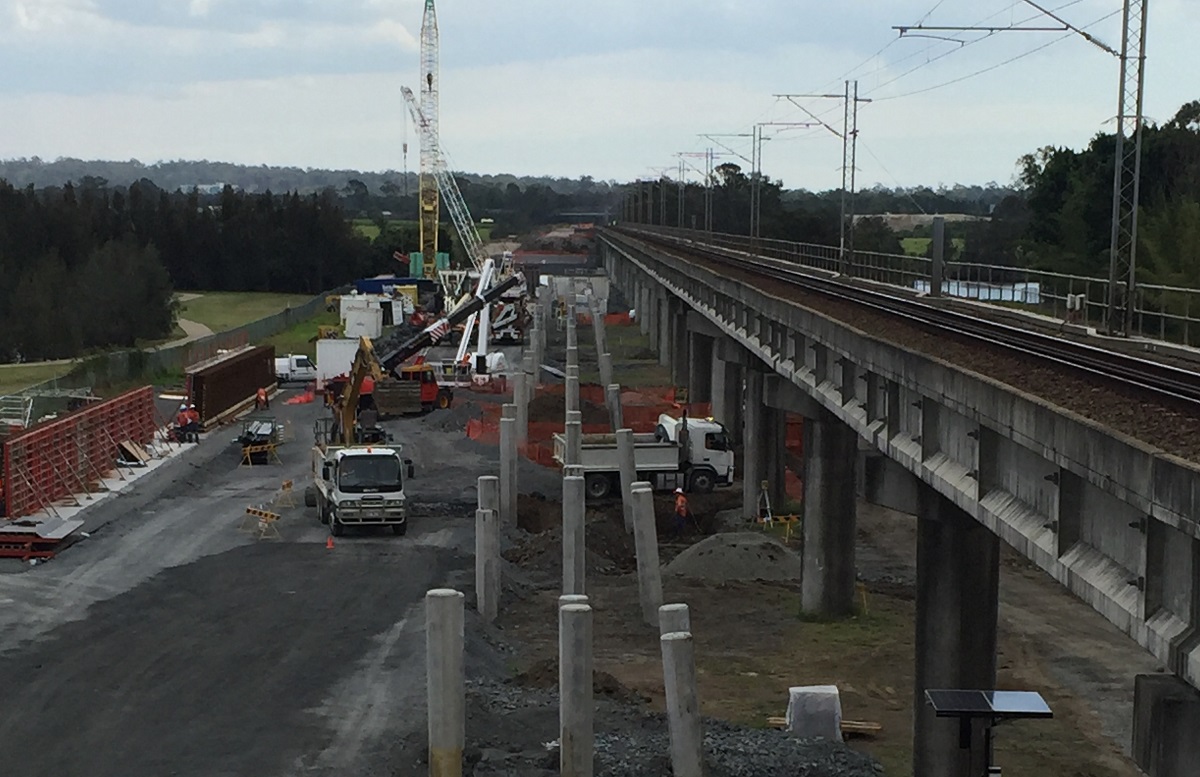

  • 550mmØ Octagonal piles at Bridge 5 in lieu of 1200mmØ bored piles
  • BG28 at Bridge 5 Bored Piles with polymer

Project Outline

The project is located in the Gold Coast region under the management of Queensland Rail. The project involves 8.2 kilometers of rail tracks comprising of 8 bridges. Golding Contractors was selected to undertake the rail duplication.

Scope of Works

Avopiling QLD Pty Ltd was awarded the contract to construct the foundation piles of the 8 bridges on the project. The piles for Bridges 3, 4 and 5 were built drilled using temporary casings and polymer drilling fluid. Another section of Bridge 5 foundations were change to 84No 550 octagonal driven piles to lengths ranging from 18 to 25.00 meters. The bored pier foundations are made up of 4No-1200mmØ, 38No-1350 mm, 22No-1500mm and 4No-1800mmØ to drill depths reaching 29.00 meters.

Logan Enhancement Project

  • STUMPY Rig installing 1050mmØ casing
  • R416 at Gateway Motorway

Project Outline

LEP is a project by Transurban Queesland, the enhancement shall be the widening parts of the Logan Motorway and Gateway Extension Motorways up to Compton Road. CPB Contractors had been seleted to design and construct the LEP Project.

Scope of Works

Avopiling QLD Pty Ltd were engaged by CPB to construct various piles, 750mm, 900mm, 1050mm, 1200mm, 1350mm bored piles, 750mm CFA and 450 driven precast piles commencing September 2017. Our "STUMPY" Rig will undertake construction of 38N0-1050mm x 13.00m in close proximity to live powerlines.
