Cutter Soil Mixing

Latest generation of soil mixing techniques which injects and mixes binding agents to produce a final hardened product.

Trench thickness can range from 640mm to 1200mm.
Minimum panel length of 2.8m.
Trench depth can range up to 43m.
Rig weight may range from 130t to 170t.

Applications

Cutter Soil Mix (CSM) technology is the latest generation of soil mixing techniques which injects and mixes binding agents (generally cement) with the aid of water and air with in-situ soils to produce a final hardened product. Once cured, these mixed soils are capable of retaining soils and water for deep excavations, environmental cut-off walls or carrying structural loads from roads, embankments, tanks or other movement sensitive structures.

The CSM system is ideally suited to granular soils but can also be constructed through clays and some lower quality rock.

Advantages

  • Cost effective.
  • Very quick and precise construction.
  • The in-situ soil is used as a construction material.
  • Very little generation of spoil (important factor in contaminated areas).
  • No vibrations induced during construction.

Otto Rosebery, 26-56 Rothschild Avenue

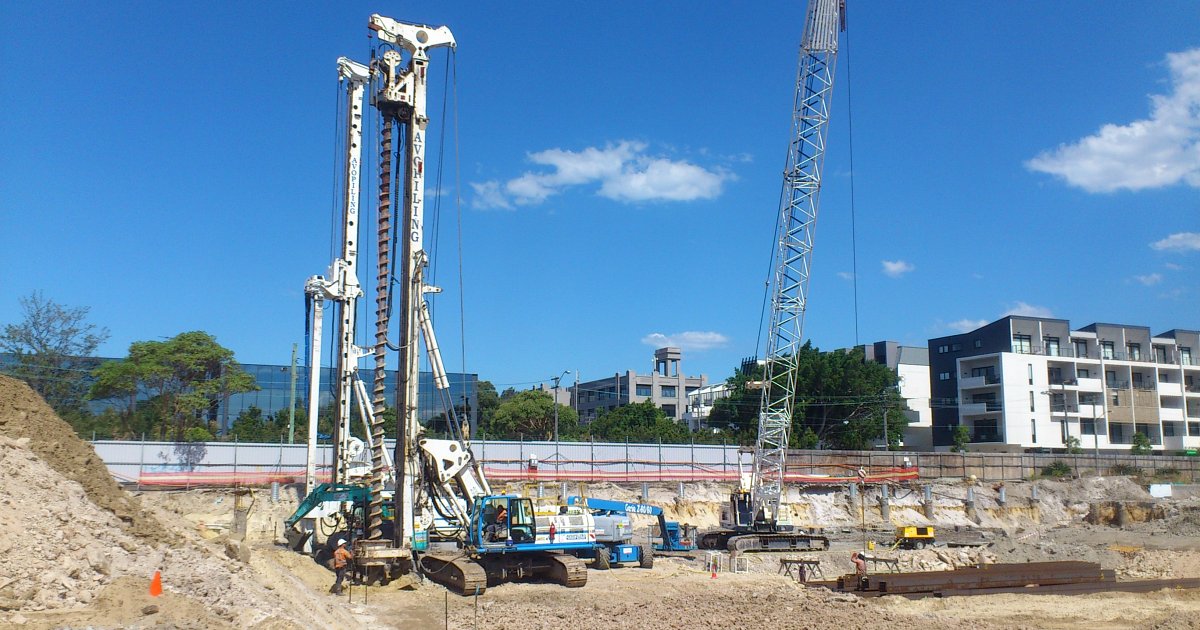

  • Otto Rosebery CSM and CFA systems

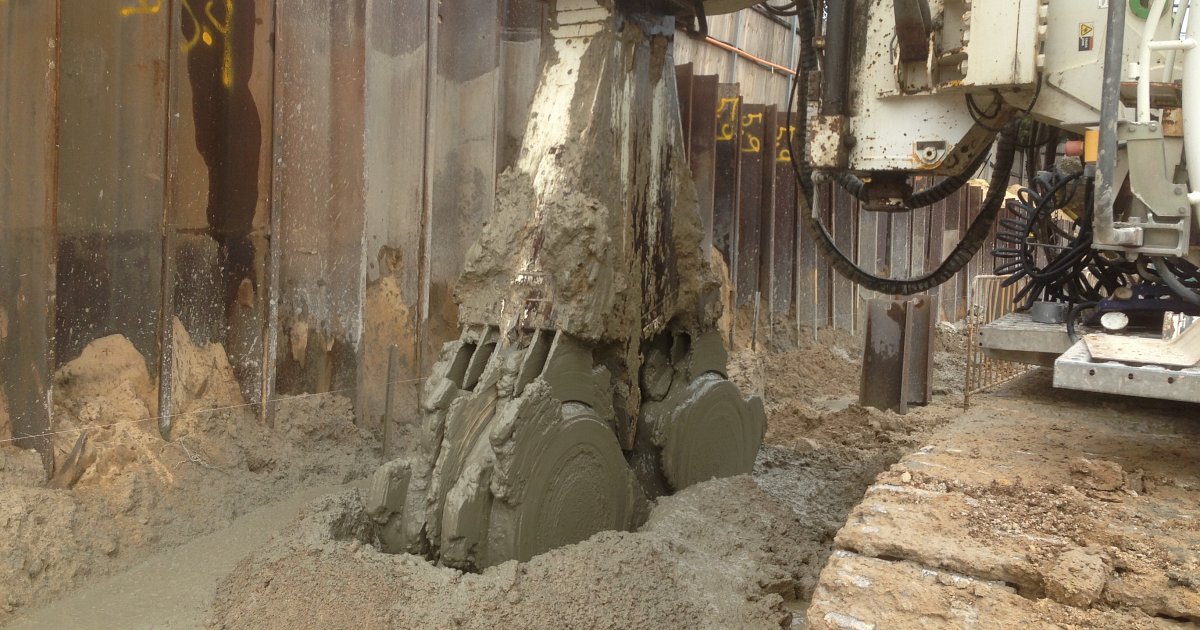

  • Mixing soil adjacent to sheetpiles

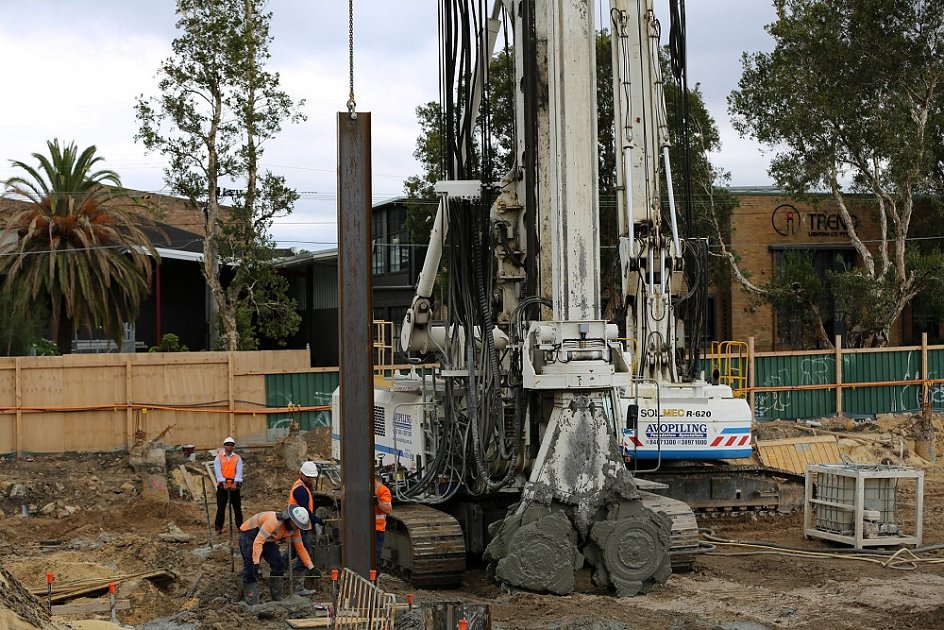

  • Lowering of steel column after soil mixing

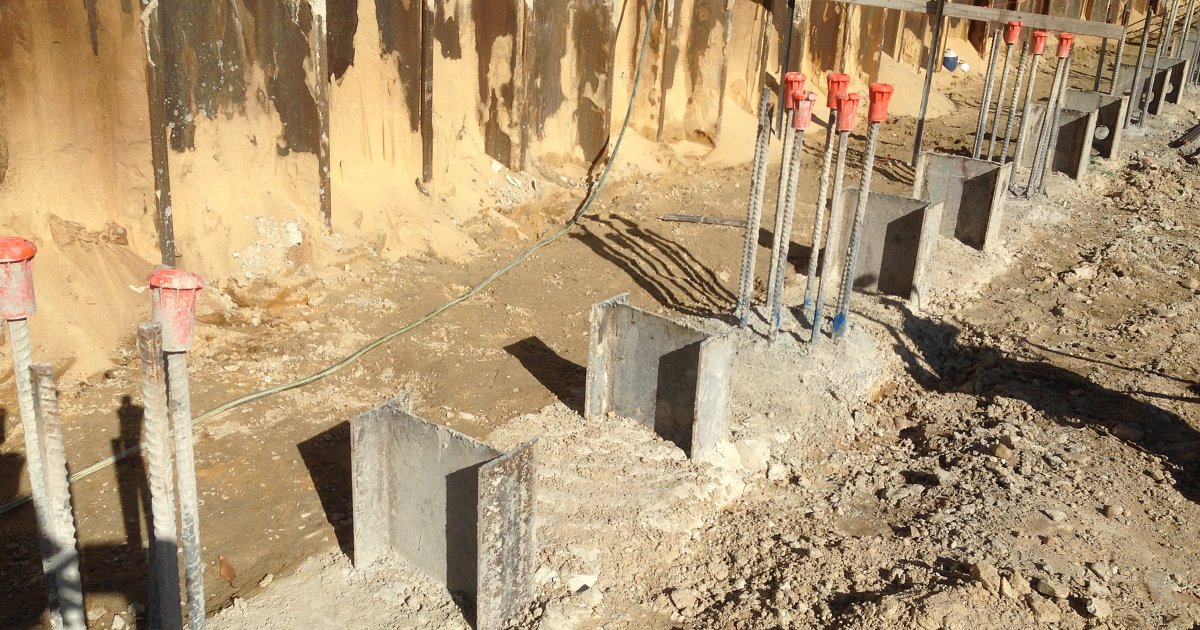

  • Combination of UB columns and CFA piles

Project Outline

OTTO Rosebery is a residential building project comprising of 4 apartment buildings ranging from 3 to 7 storeys with 2 basement parkings. Brown is the nominated Structural Consultant and ICON Construction Group is the nominated construction company to undertake civil and building construction works.





Scope of Works

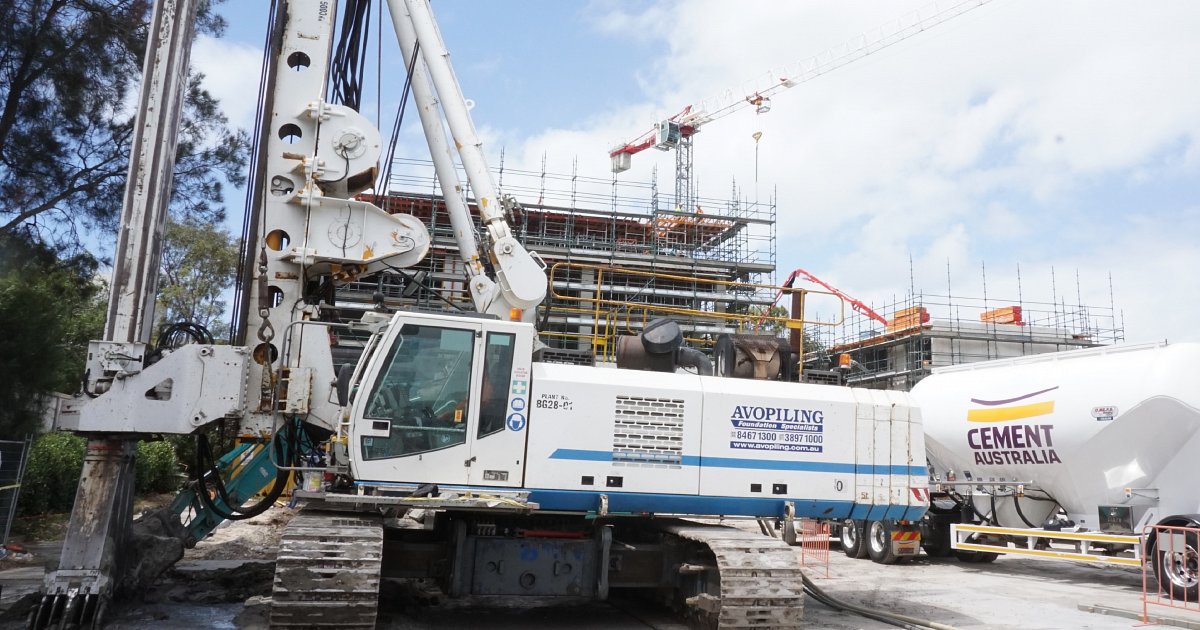

Avopiling was tasked to design and construct CSM walls and exterior/interior CFA Piles The project is programmed in two stages. Stage 2 is noted to be difficult due to existing concrete piles needed to be avoided during actual construction.



Stage 1 is made up 188 CFA piles with varyiing sizes 450Ø, 600Ø and 750Ø to a maximum depth of 17 metres using 40 to 60 mpa concrete and 97 CSM wall panels with a dimension of 640mm X 2800mm reaching depths of 13 metres. Three wall sections were anchored to a total of 84 anchors and one wall section is cantilevered with only a 9mm inclonometer deflection. CSM walls consisit of 4 external and 2 internal panels. CSM walls are reinforced with 2-3 of 310UB40 steel beams. The walls were able to achieved 8-12 Mpa strength.



Stage 2 is made up of a combination of 88 panels CSM wall and CFA piles, wall panels to 8.5 metres deep and 163 nos. of CFA piles with various diametres to depths of 12.6 metres.

76-82 Bay Street Botany

Project Outline

Products / Services
Cutter Soil Mixing

The project is a proposed 6 storey residential development with 1-2 basement parkings.

Scope of Works

AT Building Pty Ltd awarded the contract to Avopiling Australia to design and construct the cuitter soil mixing wall to depths ranging 7.00 meters to 11.00 meters. Panels are to be anchored and reinforced with steel columns.

Project examples

Perth City Link, Perth, WA.

Perth City Link, Perth, WA.

WA

Perth City Link, formerly known as the Northbridge Link, is a collaborative project funded by three tiers of Government and led by Metropolitan Redevelopment Authority and the...

Project examples

Otto Rosebery, 26-56 Rothschild Avenue

Otto Rosebery, 26-56 Rothschild Avenue

NSW

OTTO Rosebery is a residential building project comprising of 4 apartment buildings ranging from 3 to 7 storeys with 2 basement parkings. Brown is the nominated...

Project examples

76-82 Bay Street Botany

76-82 Bay Street Botany

NSW

The project is a proposed 6 storey residential development with 1-2 basement parkings.
