Royal Shore Ermington

Project Outline

Products / Services

Continuous Flight Auger Piles Drilled Displacement Piles Sheet Piling

Royal Shores Ermington is a residential development project comprising of Lots 301-302, 303-304, 305 and 306. These lots will house medium rise buildings with two basement car parks. The sites are situated next to the Parramatta River and required 6.00 meters of excavation to create the basement structures.

Scope of Works

Avopiling was awarded the contract by Dasco Australia to design and construct the foundation piles and install sheet piles. Sheetpiles are double AZ20-700 to lengths ranging from 12 to 25 metres and with a total area of 15,000 square meters.

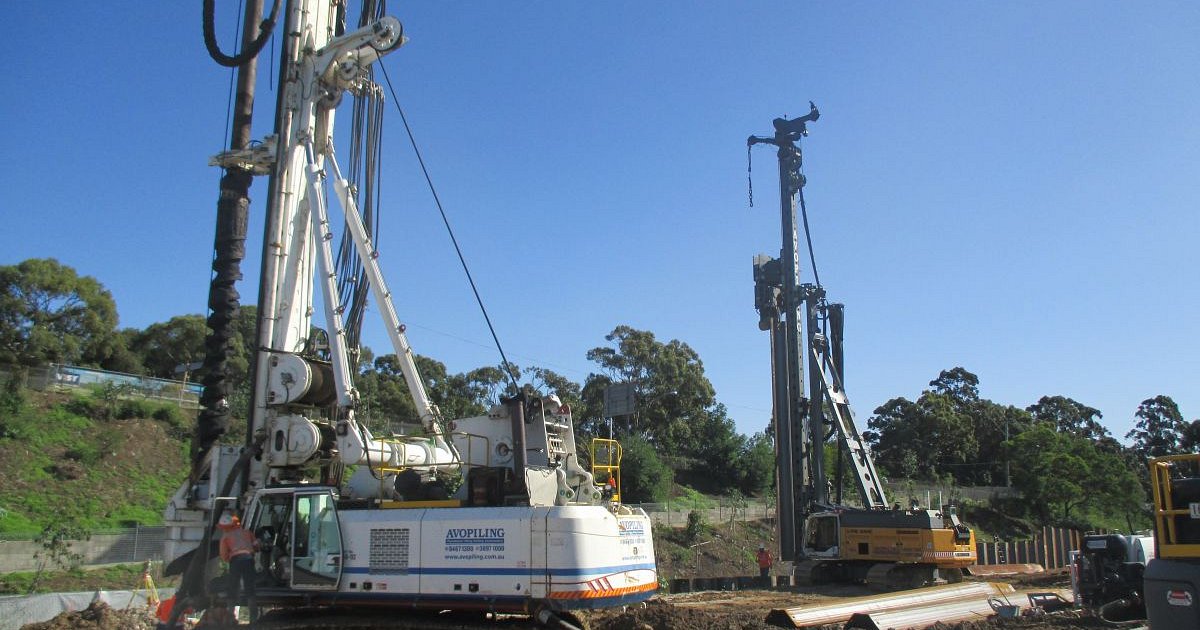

Foundation piles are mostly drilled displacement piles ranging from 450mmØ to 610mmØ to depths of 16.00 to 25.00 metres. CFA Piles 750mmØ and 900mmØ to depths of 22.00 meters and UC steel columns with lengths from 18 to 21 meters were also installed as part of the foundation piles.

Drilled displacement piles on crtical sections were subjected to PDA test and showed positive results.
